Product Description
Product Description

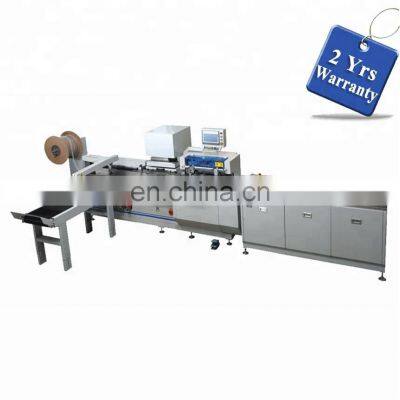

UT420 Automatic Double o Wire Binding and Hole Punching Machine for calendar notebook album book
Videos
Video demonstration only for reference
Video 01: /watch?v=5yV0Wlb4c44
Video 02: /watch?v=FKM0PQP2MG8
Product Description
Features:
1, Widely used to bind books, notebooks and calendars by double wires
2, Automatic cutting , loops-counting, skip binding and closing.
3, Easy to operate and adjust by PLC advanced system
4, Quite efficient and reliable
5, Through mold changing, it can be used to work on various loops diameters.
Parameters:
Work Speed: 600-1500pcs/hour
Air Pressure:5-8Bar
Paper size:580*840mm
Ring size:1/4-3/4 inches
Power: 3 PH, 380V/220V, 50/60HZ
Dimension for Main Body: 4000*1300*1250mm
Weight:1000Kg
Wire Specification:
Size
| Pitch
| Back Ground(mm)
| Wire Diameter(mm)
| Binding Thickness(mm)
| Binding Page(Page)
|
1/4
| 3:1
| 4.0*4.0
| 6.4
| 4.9
| 45
|
5/16
| 3:1
| 4.0*4.0
| 7.9
| 6.3
| 60
|
3/8
| 3:1
| 4.0*4.0
| 9.5
| 7.9
| 75
|
7/16
| 3:1
| 4.5*4.5
| 11.1
| 9.5
| 85
|
1/2
| 3:1
| 4.5*4.5
| 12.7
| 10.9
| 100
|
9/16
| 3:1
| 4.5*4.5
| 14.3
| 12.2
| 120
|
5/8
| 2:1
| 5.0*5.0
| 15.9
| 13.4
| 130
|
3/4
| 2:1
| 5.0*5.0
| 19.1
| 16.6
| 160
|
Detailed Images
Service Team
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
FAQ
1. What information should i let you know if i want to get a quotation?
A: Detailed size of your finished products in Max and Min
B: Paper thickness in GSM
C: Some photos of your finished products
2. Are you a manufacturer
Yes we have been manufacturing such machines over 10 years and also we are a professional exporter.
3. What about the payment term?
Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents.
4. What is the warranty?
Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5. What is your aftersale service?
Any questions will be responded within 24 hours by email, skype, phone call or whatsapp. In addtion, we have professional engineer available for overseas service.
6. What is the delivery time?
Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
Packaging & Shipping
Wooden Case Loading and Transport
Contact Us
WELCOME TO CONTACT US WHENEVER YOU NEED US.
DANIEL SUER +86-18258286679 (WHATSAPP/MOBILE)
EMAIL: UTECS @UTECSINTER.COM, UTECSINTER @GMAIL.COM
SKYPE: DANIELSUER
WEBSITE: WWW.UTECSINTER.COM
>>
