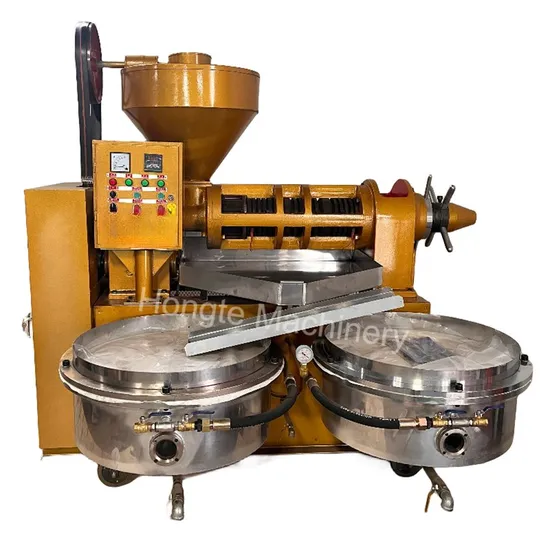

Automatic Temperature Control Oil Making Machine Oil Extraction Machine Oil Press Machine

Product Description

Product Description
The series of automatic temperature control vacuum combination oil press has added the automatic control function of the chamber heating, snail and ring before pressing, which has changed the traditional way of heating up with dry cake milling, shortened the preparation time, reduced energy consumption and wear of the machine, and automatically kept warm the chamber if the production is interrupted.
The single press is turned into a press (squeeze) filter (oil) combination machine, and after the grease is squeezed out, it directly enters the vacuum oil purifier for filtration.

1.Characteried by simple design, easy to operate and maintenance.

2.Cast iron machine base.

3.High productivity,energy saving and labour saving.

4.Electric heating and oil pan heating make the oil temperature more uniform.

5.Compact structure, stable functions.

6.Main parts of chamber through the processing of high-temperature tempering and low temperature quenching;


Product Parameters

Model	HT-140WKZ
Processing Capacity (t/24h)	9-11
Oil Press Power (kw)	18.5 or 22
Temperature control power (kw)	≥3.0
The power for filtration (kw)	2.2
Machine weight (kg)	1400
Machine size(L*W*H) (cm)	200.5*161*201
Oil content of dry cakes (%)	≤7.6
Spiral axes rotate speed(r/min)	32-46

Detailed Photos
Application
Raw materialScrew Cold and Hot Oil Press Machine is suitable for rapeseed, mustard, peanut, soybean, sunflower, coconut, flaxseed, sesame seed, cotton seed, tea seed, walnut, corn germ, rice bran and so on.
We can also provide seeds testing service for free if you need.
Packaging & Shipping
Factory&Workshop

Certifications
FAQ
Q: Which machine is best for oil extraction? Hydraulic or screw oil presser? A: It depends on the oilseed. High value oil fit for hydraulic oil press, it is better to use screw oil press machine. If Want to get edible and more oil yield, it's better to use screw oil presserQ: What are the different types of oil pressing machines?A: From the working principle of oil presser, there are 2 types of oil press machine on the market, one is hydraulic oil presser and another called screw oil presserQ: What equipment is used to make sunflower oil?A: One of our screw oil pressers can finish all the processing of making sunflower seed oil. Our machine supports cold press, no need toaster machine. Our screw oil press machine is also equipped with the vacuum oil filter, it can deliver the kitchen grade oil directly.
Q: Can i test the machine before ordering?
A: Yes, of course. We accept customized.
Q: The power supply in our country is unstable. If there is a power outage during the pressing process, will the machine be damaged?A: Generally it not damaged the machine, when power outage, keep off the machine, when have power, operate the machine is okay. But noted, need let the material in the press system out if power outage.

---
