| US$3.00-8.00 | 500 Pieces (MOQ) |

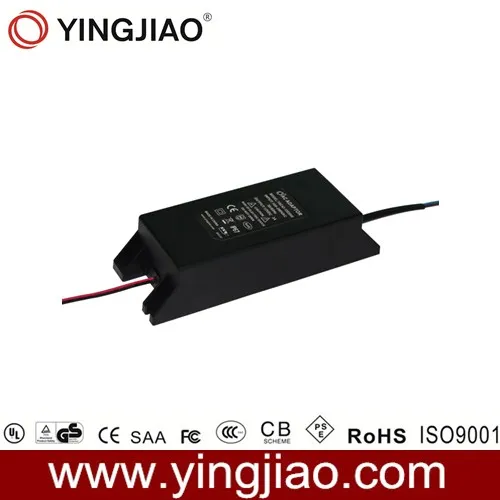

| Model: | YSC50 |
| Power: | 60W max. |
| Input: | 100-240VAC 50/60Hz |
| Output Voltage: | 5-48V |
| Output Current: | 0.1-5A |
| Input current: | 1.5A max. |
| Inrush Current: | 65 Amps max. at 230VAC/50Hz,full load |
| Leakage Current: | 0.25mA Max. at 264VAC input |
| Energy Efficiency Level VI : | CoC 5 / DoE 6 / CEC VI |
| No Load Power Consumption : | <0.15W |
| Protections: | Short Circuit /Over Current /Over Voltage |
| Short Circuit Protection (SCP): | Protection to Zero Voltage |
| Over Voltage Protection (OVP): | ≤Vout*150% |
| Over Current Protection (OCP): | 110%-180% |
| Working TEMP.: | -20°C-50°C |
| Working Humidity: | 5%-90% RH non-condensing |
| Storage TEMP.,Humidity and altitude: | -40ºC ~+70°C ambient temperature and a 5% to 95% relative humidity range throughout an altitude range of -60 meters to +5000 meters AMSL. |
| Input Plug: | EU,US,UK,AU etc. type according to customer's choice |
| Certificates and approvals: | UL,GS,CE,EMC,SAA,FCC,CB,PSE,CCC,RoHS,REACH |
| EMI EMISSION: | Radiation Test&Conduction Test: EN 55022/FCC Part 15 Harmonic Test : EN 61000-3-2 Flicker Test : EN 61000-3-3 |
| EMS IMMUNITY: | ESD Test:EN 61000-4-2 RS Test:EN 61000-4-3 EFT Test:EN 61000-4-4 Surge Test:EN 61000-4-5 CS Test:EN 61000-4-6 DIP Test:EN 61000-4-11 |
| MTBF: | 100000 hours minimum at full load at 25ºC ambient |
| Life: | 3-5 years alternative |
| Dimension: | 150*56*35mm |
| Weight: | 453g |
| Packing: | 20PCS/CTN,40*30*20cm |
| Model: | YSC50-0905000 | YSC50-1205000 | YSC50-1504000 | YSC50-1903160 | YSC50-2402500 | YSC50-4801250 |
| DC Voltage: | 9V | 12V | 15V | 19V | 24V | 48V |
| Rated Current: | 5A | 5A | 4A | 3.16A | 2.5A | 1.25A |
| Current Range: | 0-5A | 0-5A | 0-4A | 0-3.16A | 0-2.5A | 0-1.25A |
| Rated Power: | 45W | 60W | 60W | 60W | 60W | 60W |
| Ripple & Noise(max.): | 120mVp-p | 120mVp-p | 200mVp-p | 200mVp-p | 250mVp-p | 300mVp-p |
| Voltage Tolerance: | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Line Regulation: | ±3% | ±3% | ±3% | ±3% | ±3% | ±3% |
| Load Regulation: | ±5% | ±5% | ±5% | ±5% | ±5% | ±5% |
| Efficiency: | ||||||
| Setup,Rise,Hold up time: | 1.5 second max./40 MS max./15 MS max. at 115VAC input and output max. load. | |||||
