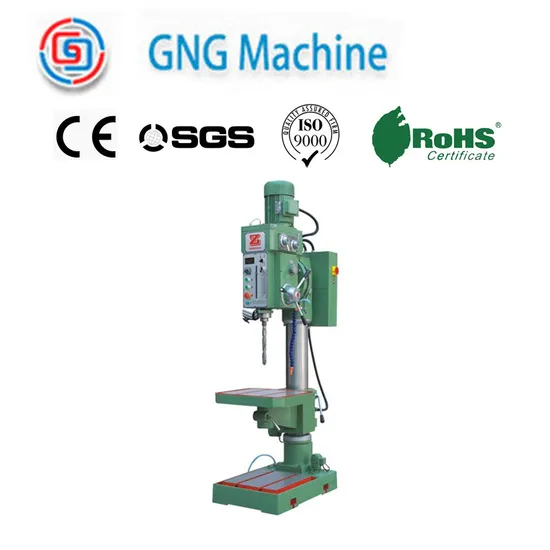

Electric Gear Vertical Drilling Machine

Product Description

Min. Order Quantity: 10 Set/Sets
Supply Ability: 800 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: T/T
Quick Details
Condition: New
CNC or Not: Normal
Drilling Speed: 38-1730rpm
Place of Origin: Shandong, China (Mainland)
Brand Name: GNG
Model Number: ZS5140F
Voltage: 380V
Power(W): 2200W
Dimension(L*W*H): 1000X600X1990mm
Weight: 715kgs
Certification: CE After-sales Service Provided: No overseas service provided
Packaging & Delivery
Packaging Details: G. W/N. W 715/680kgs Packing dimension 1000X600X1990mm
Delivery Detail: 30-45days
Specifications
Max drilling capacity 40mm
Max tapping capacity M32
Diameter of culumn 168mm
Spindle travel 200mm
ZS5140F vertical drilling machine
Max drilling capacity 40mm
Max tapping capacity M32
Diameter of culumn 168mm
Spindle travel 200mm
Distance of spindle axis to column generating line 340mm
Max distance of spindle nose to table 680mm
Max distance of spindle nose to base 1100mm
Spindle taper MT4
Spindle speed range 38-1730r/min
Spindle speed series 12
Spindle feed 0.1/0.2/0.3 mm/r
Dimension of work table surface 500X420mm
Table travel 500mm
Dimension of base table 450X450mm
Overall height 2240mm
Main motor 2200/2800W
Lift motor 370W
Coolant motor 40W
G. W/N. W 715/680kgs
Packing dimension 1000X600X1990m
Standard accessories:
Drill chuck
Arbor
Taper sleeve
Optional accessories:
Multi-spindles
Angle vice
Safety guard
Characters:
New designed, pleasing appearance, compact construction, wide speed change range, easy to operate
Easy operation with its unique work table, and both motor-drive and manual operated lifting device.
The working table can be rotated 180 degree and can be tilt ± 45 degree also. It is reliable and easy job can be done. Equipped with coolant system and tapping mechanism.
Equipped with shortcut and overload protection, Its electrica system with powerful spindle motor. It designed according to IEC standard.
Characteristic protection device is safe and reliable. Ideal choise for single piece, small batch and mass production for drilling. Counter boring, reaming, tapping, spot facing etc.

---
