Writing Paper Calender Machine

Product Description

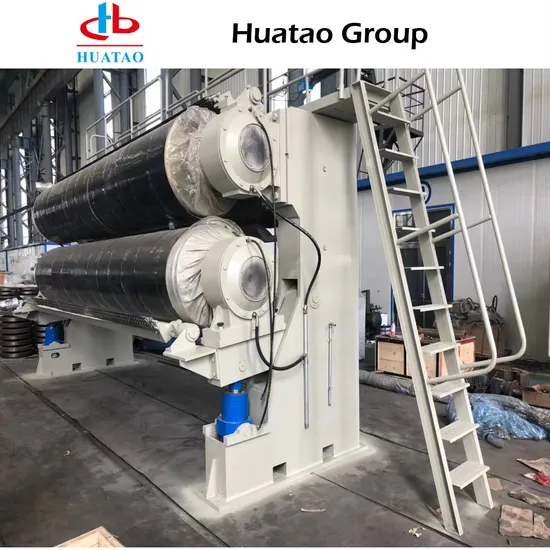

Writing Paper Calender Machine
Product Description
Based on the roll structure, paper calender machine can be divided into internal fixed crown roll type and multi-zone crown controllable roll type. It can also be divided into soft nip type and hard nip type as well as single nip type and double nip type. The multi-zone crown controllable roll (CCR) type paper calendering machine is developed to meet specific paper quality requirements, widely used in the papermaking industry.
We offer fixed crown or multi-zone crown controllable roll types of paper calendering machine with soft roll or hard roll. To compensate the deflection of hot heating rolls, the CCR type of soft nip or hard nip roll can be installed in the top or bottom position.
Soft Calender
When pressurizing, elastic deformation of soft roll leads to surface contact between hard roll and soft roll. The surface contact width of soft calender is 10-25 mm, which is 15 times wider than that of a hard calendering machine. The unit pressure of the soft calendering machine is generally 20-40 N/mm2, which is just 1/2-1/4 of that of the hard calendering machine. Owing to the wide nip, the sheet stays longer in the nip and the energy consumption converts into heat which passes to the paper and makes the paper fiber plastify. The softened fiber is easier to be calendered, thus increasing smoothness.
The rebound resilience of surface material enables the soft roll surface to suit any bad flatness of sheet, so the soft calendering machine can achieve better softness than common hard calendering machines. Color spots can be eliminated and printability is greatly improved.
Another advantage of the soft calendering machine is paper sheet can be in motion with high moisture under the condition of elimination of paper blackening and color spots. The temperature, nip pressure, width and number of the soft calender all have impact on the calendering effect.
Main Parameters

Item	Index
Paper Web	1880-10000 mm
Speed	50-1000 m/Min
Linear pressure	50-300 kN/m
Temperature	180 ºC Max.

Hard Calender
With high surface hardness, the hard roller acts on the paper through high temperature and pressure, thereby uniformizing the thickness of the paper. Generally, the thickness can be controlled below 0.01mm per nip. After processed by this hard calendering machine, the paper sheet has its smoothness improved greatly and the coating weight is reduced as well.
Main Parameters

Item	Index
Paper Web	1880-10000 mm
Speed	50-1000 m/min
Linear pressure	50-300 KN/M
Temperature	180 ºC Max.

Detailed Photos
Company Profile
Huatao Group is set up in 2008. The main business is to serve the pulp and paper industry by providing quality accessories and paper machine renovation services to help customers solve various problems in production, improve production efficiency and reduce energy consumption.
Huatao Group has a professional technician team that devoted to pulp and paper industry. We are able to make the best proposal after completely analyzing and figuring our problems of the paper production line though paper-making progress, equipment, electric automatization and so forth.
We follow the "short process" concept in implementing the customer's projects to reduce energy and water consumption. On the premise of quality assured, running speed of paper machine are made in the best condition and manufacture cost decreased on the bottom.
In addition to providing equipment, it is more important to provide technical services, including engineering, system integration and equipment upgrade services.

---
