Sheet V Groove Machine, CNC V Grooving Machine, 4 Axes CNC Control V Planer, V Slooting Machine, V Cutting Machine

Product Description

Product Description

sheet v groove machine, cnc v grooving machine, 4 axes cnc control v planer, v slooting machine, v cutting machine

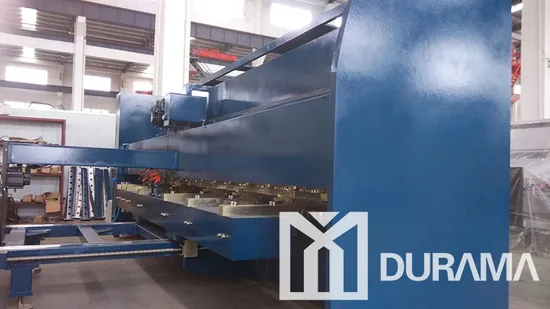

DRL Series CNC Slotting Machine (self-digging type)

DURAMA equipment is fully CNC Sheet Metal Slotting Machine for
metal sheet. Durama use of advanced CNC machine tool systems,
modern design. With high precision, simple operation, no noise,
no vibration and other characteristics. Durama machine is used in
sheet metal (including stainless steel, aluminum, aluminum plates,
copper, iron, wood glue, acrylic panels and other special plate.)
V-groove, U-groove processing carried out on, especially for sheet
metal bending in front of the V-groove processing.
Product Description:
1. Gantry V groover machine with 4 axis are designed and developed
through years of experience in sheet metal working machineries.
2. High speed precision servo drive
3. Full self-plane table with high flat degree
4. Low alloy and high strength structural steel,
overall tempering , good rigidity, strong and durable.
5. Clamp firmly and fast.
6. Durama pneumatic lever extrusion device
7. The durama special stainless steel back support
8. High effciency blowing equipment, avoid to hurt the workpiece
9. The high speed sliding blade carrier equip
10.Two type of knife tool, with three knife, with high planing efficiency

Product Parameters

Main Specification and Technical Parameters:

0	Model	DRL3212	DRL4012	DRL4015	DRL6012	DRL6015
1	Thickness (mm)	0.6-4	0.6-4	0.6-4	0.6-4	0.6-4
2	Length (mm)	3250	4050	4050	6050	6050
3	Width of sheets (mm)	1220	1220	1500	1220	1500
4	Grooving speed (m/min)	15-60	15-60	15-60	15-60	15-60
5	Knife rest(Y2 axi) and Y2 axis (m/min)	0.5-20	0.5-20	0.5-20	0.5-20	0.5-20
6	Y axis Minimum unit	0.01	0.01	0.01	0.01	0.01
7	Y axis Minimum positioning accuracy	0.05	0.05	0.05	0.05	0.05
7	Z axis Minimum unit	0.01	0.01	0.01	0.01	0.01
9	Z axis Minimum positioning accuracy	±0.01	±0.01	±0.01	±0.01	±0.01
10	X axis Motor power(kw)	W=4.5	W=4.5	W=4.5	W=4.5	W=4.5
11	Y1-y2- axis Motor power(kw)	W=1	W=1	W=1	W=1	W=1
12	Z axis Motor power(kw)	W=1	W=1	W=1	W=1	W=1
13	Air pressure (Mpa)	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.6
14	Dimension (L*W*H)	5200*2350* 2400	6000*2350* 2400	6000*2650* 2400	8000*2350* 2400	8000*2650* 2400
15	Weight	6.5 ton	7.5ton	9.3ton	11.3ton	14.2ton

Company Profile

Company Information:
We are DURAMA, durable machines and spare parts supplier, the designers and manufacturers of industry products. Our factories are located in industrial area in Nanjing City. With over 10 years of experience, DURAMA supplies the most comprehensive range of machines and spare parts available today.
With continued investment and an unrivaled reputation for quality and service, DURAMA is trying to be the global center of excellence for Press Brake Tools and bending technology. We also supply relative industry machines and materials.
DURAMA is always trying best to supply durable machines and spare parts, and timeproof service to our customers.
After Sales Service

Our Services:
1.Pre-sales:help client select the suitable machine
2.After-sales:provide free technical guidance
3.Installation service:we dispatch technician to customer's factory for installation
4.Training service:offer training of how to use our machines
5.Quality guarantee:machine warranty is 3 years, We offer flexible extended warranties if needed.
6.we arrange final test before shipment
7.Other services :
1): response within 1 hours
2): provide solution in 1 day
3): solve complaint in 2 days
Packaging & Shipping

Packaging and Shipping:
Standard Exporting Packaging for DURAMA Shearing Machine
1.inner machine, it is packaged in moistureproof film.
2.pallet or wood box.
3.ground fixed bolt to confirm steady and avoid destory.
4.tightly exporting standard belf to fasten machine in container.
If you would like to know some more details about this product, please leave a message with your contact information, we will reply you at earliest time!

---
