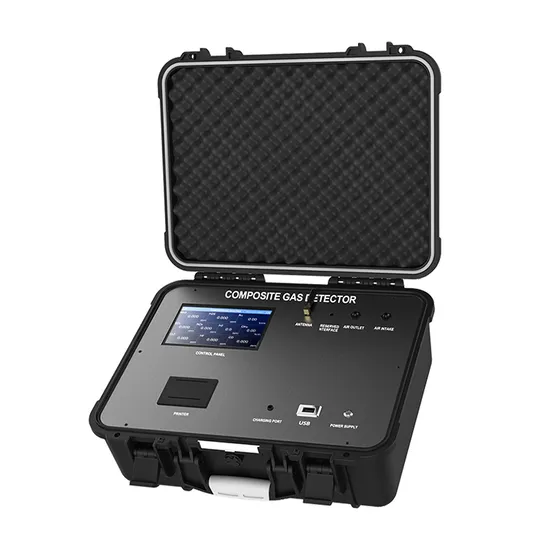

Multi-Function Composite Multi-Gas Detector Pump Suction Confined Space CO2 So2 Sf6 Toxic and Harmful Gases Portable Gas Detector

Product Description

introduce
YF-900 portable multifunctional gas analyzer can detect more than 20 toxic and harmful gases, including carbon monoxide, hydrogen sulfide, ammonia, hydrogen chloride, chlorine, toluene, xylene, trimethylamine, methane, sulfur hexafluoride, carbon dioxide, sulfur dioxide, TVOC, dust, particulate matter, etc. There are 100 types of gas combinations available, and sales consultation can be conducted to customize according to customer requirements. The principle of the analyzer is that when the substance or gas being measured is sucked into the probe, the internal sensor will immediately emit an induction. Sensors generate certain electrical signals based on the concentration of gas. After being amplified by the circuit, the signal is processed by the CPU through AD sampling, temperature compensation, and intelligent calculation to output accurate Bluetooth signals, WIFI communication signals, wireless signals, etc. Customers can collect these signals and connect them with mobile phones, printers, and cloud platforms for data storage.
The analyzer design combines anti-corrosion rubber casing to meet the requirements for use in harsh environments
Please. The product adopts pump suction sampling to measure gas and is equipped with high-quality imported sensors, which have the advantages of
High sensitivity and excellent repeatability. The instrument is controlled by an embedded microcomputer, which is easy to operate,
Fully functional, highly reliable, with multiple adaptive capabilities, using graphic and text LCD displays,
Intuitive and clear. Language switching or customization is possible.
Product Features
The sensor channel can select different toxic and harmful gases, oil fumes, particulate matter, and particle numbers
1. Three proof design, waterproof, dustproof, and explosion-proof
Using high-quality gas sensors for accurate measurement
7-inch industrial Android color screen, real-time data intuitive and prominent
2. Personalized design, display parameters can be adjusted according to habits
3. Built in 16000mah lithium battery, supporting up to 24 hours of operation
Equipped with an internal air pump, it can fully absorb gases, oil fumes, particulate matter, and particle count in the test area
Adopting the latest human-machine operation screen system, the operation is simple
Built in Bluetooth, WIFI can synchronize data with the phone, and GPS function can be upgraded
4. Printer, directly print data, print title can be changed on screen
High memory storage chips can store historical data
5. Can upgrade APP software for remote data viewing
6. Can remotely upgrade software and maintain equipment remotely
The data is directly in table mode everywhere, and can be exported directly from USB or USB flash drive
Equipped with dedicated sampling probes for remote or blind spot monitoring
7. Function support customization, welcome to contact sales for consultation
Bluetooth, 4G, USB, printer (standard), GPS positioning (optional), WIFI (optional)
Display screen: 7-inch industrial TFT color screen

Charging voltage:	12V (equipped with a dedicated charging adapter)	Corresponding time:	<10 seconds (T90)
Battery voltage:	12.6V	Measurement accuracy:	≤± 3% FS;
Charging current:	1A	Resolution:	0.001
Battery capacity:	16000mAh	Repeatability:	≤± 2% FS;
Charging time:	more than 5 hours	Zero drift:	≤± 1% FS/6h;
Working hours:	24 hours or more	Span drift:	≤± 1% FS/6h;
Working power:	around 1.8W	Linear error:	≤± 1% FS;
Sensor type:	laser, electrochemical or PID, infrared, catalytic combustion (determined by sensor);	Working temperature:	-20~60 degrees;
Gas type:	can be customized according to gas type or substance type;	Working humidity:	0~95% RH (no condensation)
Sampling method:	pump suction;	Output methods:	Bluetooth, 4G, USB, printer (standard), GPS positioning (optional), WIFI (optional)
Gas range: Carbon monoxide:	Carbon monoxide: 0-100ppm, 0-10000ppm Oil fume: 0-10mg/m3 Non methane: 0-10mg/m3 Particulate matter support customization: 0-10mg/m3 (choose according to actual application)

Product Description
Factory strength
Applicable scenarios
Product Parameters
Product selection

---
