Rail Drilling Machine For Railway Suppliers Electric Rail Drilling Machine
A Rail Drilling Machine is a type of portable drilling machine specialized for drilling holes in rails. Rail Drilling Machines are also popularly called as Rail Drills, Portable Rail Drill, Rail Core Drilling Machines, etc.
This machine is an indispensable tool for railway maintenance, construction and emergency repair operations. It uses a hollow drill bit, a screw nut clamping mechanism with quick opening function, fast clamping, accurate positioning, fast drilling, simple operation and safety use.

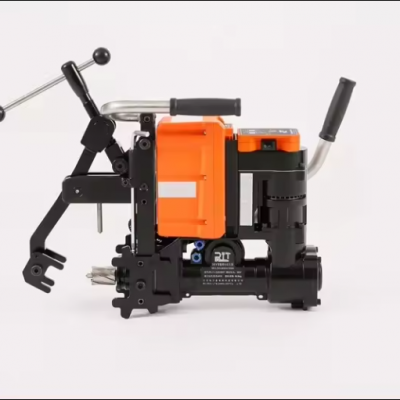

LJ-LDG1901 Electric Rail Drilling Machine
36V Intelligent lithium battery rail drilling machine*Fully waterproof design, support rainy day work*Clean energy, green and pollution-free
*Intelligent control system, keeps drilling at a constant speed, and displays the number of holes with remaining power
*Super endurance capability : Drilling more than 40 holes each charge (31 mm diameter hole)
Drilling more than 110 holes each charge (13.5 mm diameter hole)
Drilling more than 180 holes each charge (9.8 mm diameter hole)
*Ultra-light weight, only 15.9 kg including battery
*Overload reminder and protection design
*Quick-change design of the drill bit, do not need any additional tools
Product Parameters
Model
| LJ-LDG1901
|
Type
| Electric Rail Drilling Machine
|
Material
| Alumilium
|
Dimensions (L x W x H) (mm)
| 515*148*390mm
|
Rotation rate
| 220-300rpm
|
Power of motor
| 2.8 KW
|
Drill bits range
| Φ9.8mm-Φ32mm
|
Illumination
| LED lights
|
Drill bit clamping
| quick change (do not need any additional tools)
|
Weight
| 15.9 Kg (including battery pack ) 13.4 Kg (excluding battery pack)
|
Normal operating temperature requirements
| minus 30°C to 45°C
|
Battery pack voltage
| 36V
|
Battery pack capacity
| 12Ah
|
Drilling time
| | Waterproof rating of the whole machine
| IP 45 ( safe to use in the rainy days)
|
>>
