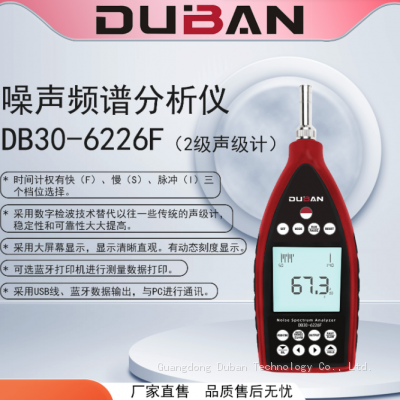

The Noise Spectrum Analyzer is a universal sound level meter that measures the exponential time weighted sound level, an integrated average sound
level meter that can measure the time average sound level, and an integrated sound level meter that measures sound exposure. It can also measure
Accumulated percentile sound level (statistical sound level), the instrument is also a spectrum analyzer that can measure 1/1 octave filter and 1/3
octave filter, and its performance is in accordance with GB/T3785-2010 standard level 2 And IEC61672:2013 Class 2 sound level meter requirements, but also meet the requirements of IEC1260:2014 Class 2 and GB/T3241-2014
* With the function of integration and statistics, 800 groups of single measurement and 6 days of regular measurement can be achieved. The stored data can be read and printed. The collected data can be checked when the regular measurement ispaused.
* The three time weighting F, S, and I can be selected.
* The digital detection technology is used to replace some traditional sound level meters, the stability and reliability are greatly improved.
* Large screen display is adopted, with clear and intuitive display. With dynamic scale display.
* Optional Bluetooth printer for data printing.
* Use USB data output to connect with PC.
* Provide Bluetooth data output choice.
| accuracy class | class 2 |
| standardization | GB/T 3785.1-2010/IEC61672-1:2013/ANSI S1.4-2014/JISC 1516-1:2014 |
| Standard microphone | Level 2 Measurement microphone sensitivity /40mV/Pa |
| Frequency Response | 20Hz-12.5kHz |
| Detector/filter | Floating-point digital signal processing digital detectors and filters |
| measurement index | Lp,Leq,Lae,SD,Lmax,Lmin,LN(L95,L90,L50,L10,L5),Ldn,Ld,Ln and 24hmeasurement |
| Noise dose E | √ |
| Integral statistical analysis | Man(manual operation)，10s，1m,5m,10m,20m,30m,1h,8h,24h and Regular 10s,1m,5m,10m,20m,30m,1h |
| Time weighting | （F）、（S）and（I） |
| data storage | 800 sets of data or 6 days and 24 hours of measurements |
| data retrieval | Allow viewing of saved data |
| data export | USB port connects to computer |
| Frequency weight | A weight, C weight, Lin(linear) |
| Range control | Automatic range or manual shift |
| Standard measuring range | Automatic range 30dB(A)~130dB (A) Level 2 |
| Manual shift 30dB~90dB/50dB~110dB/70dB~130dB |
| Upper measurement limit | 130dB, expandable to 140dB(A) Optional high sound pressure level measuring microphone |
| noise background | ＜24dBA |
| Electrical input feature | Maximum input voltage: 5Vrms (7.07Vpeak), preamplifier input impedance: > 6GΩ |
| display | Large screen backlit LCD with dynamic bar graph showing instantaneous sound level changes |
| Post-processing software | √ |
| Battery Types | 5xAA battery, continuous operation > 10h |
| External power port | Type C |
| External power supply voltage | 5VDC |
| Main engine size | 270x90x32 |
| Main engine weight | 360g |
| output interface | Ac output, USB interface |
clock
| Built-in clock |
| operating environment | Temperature -10°C~50°C, humidity 20%RH-90%RH |
| standard accessory | host |
| operation instruction |
| manufacturer certificate |
| hurricane globe |
| screwdriver |
| Portable case |
| optional accessory | Software CD
|
| USB connection cable |
| Bluetooth adapter + micro thermal Bluetooth printer |
| External power adapter |
| Microphone extension cable 5m, 10m, 15m, 20m |
tripod
|
| Piston generator/Level 1 sound level calibrator/Level 2 sound level calibrator |
