Crane manufacturer Mini Hydraulic Lifting 3.2 Ton Knuckle boom Mounted truck Crane

Product Description

HBQZ Hot Sales Mini Hydraulic Lifting 3.2 Ton Knuckle boom Mounted truck Crane SQ80ZB2 Factory Direct
Part 1-----PRODUCT DETAILS

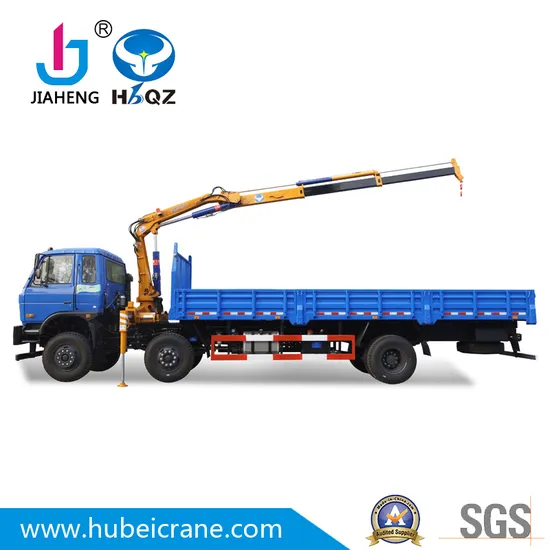

Picture show
Technical information

Model #	SQ80ZB2/ knuckle crane 3.2ton at 2m
Max Liftingmoment	80Kn.m
Max Lifting Capacity	3200kg/ 2.0m
	1500kg/ 4.12m
	1000kg/ 5.85m
	700kg/ 7.56m
Max Lifting Height	9.7m
Max Working Radius	7.56m
Boom Section	2 stages
Rotation Angle	360°All Rotaion
Rated Working Pressure	25mpa
Oil tank Capacity	80L
Related Oil Flow	30 L/min
Outrigger Span	2160-3330mm
Outrigger	2 ,adjustable, Hydraulic operating.
Crane Weight	1500kg
Installation Space	850mm
Swing type	Planetary gear reduction
Safety Device	Load Indicator, Hydraulic Safety Valve, Counter Balance Valve, Automatic Swing Brake, Hook Safety Device.
Options	Aux.winch,Aux.Boom,Remote control
Material	HG785D

Truck for reference
Truck brand	Dongfeng (other truck brand can be customized)
Cabin	Driving type: 4x2, Left hand drive (Right hand drive type can be customized)
	Color is optional
Vehicle Main Dimensions	Overall size (L x W x H)	8535,9000x2500x3650 mm
	Wheel base	5100 mm
	Cargo Body	5600x2300x500 mm
Weight in KGS	GVW	15800 kg
	Tare weight	12380 kg
	Front axle loading capacity	5000 kg
	Rear axles loading capacity	10000 kg
Engine	Type	Diesel, 4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power	180HP (132kw)
	Max Torque	650N.m
	Emission standard	Euro V
Max Speed	90 km/h
Gearbox	manual gearbox with 8 forwards & 2 reverses, with PTO
Tire	10.00R20 tubeless tire, 7 pieces including one spare tire

Our advantages:
1). Use HG70 international standard high-strength steel to reduce the weight of crane.
2).The boom of the knuckle crane is used hexagonal structure,reducing the lateral.
3).Italian brand of balance valve,hydraulic lock,operated valve,hydraulic pump and other core parts to ensure the micro-mobility,security and stability.
4).Parker brand oil seal and gasket for hydraulic pump.
5).Brand scanreco remote control operate from Sweden.
Part 2-----OUR COMPANY
HUBEI BEST CRANE CO.,Ltd is located in the central China in Hubei Province.We are a professional truck mounted crane manufacture, mainly engaged in researching, developing and manufacturing truck mounted cranes from 1 ton to 200 tons.
The Company has passed the ISO 9001-2008, and achieved the license of Special Equipment Manufacture Unit.
HUBEI CRANE is a wholly-owned subsidiary of HUBEI JIAHENG TECHNOLOGY CO.,LTD,which is formerly known as China famous hydraulic cylinder manufacture. The Head office JIAHENG was founed in 2001,the main products include a variety of special hydraulic cylinder.
After years development,JIAHENG now covers an area of 200,000 Square meters, ownes a registered capital of 1000 million RMB,and 250 million RMB worth of fixed assets .JIAHENG has established long time cooperation with over 80 big companies like Zoomlion, Fukuda Fortaleza, CIMC Vehicle Group, and so on.
Our company have more than 800 units equipment for mass production.
We can product around 220 thround units per year of hydraulic cylinder and 500 units per year of truck crane.
Our company have more than 150 technical staff, Have more than 10 invention patents and 60 utility patents.
So we can produce custiomed products or develop new products.
Part 3-----EXHIBITION
Our company attend the CANTON FAIR in China twice one year since 2014.
And also attend the BAUWA FAIR evevry two year.
We also coopearate with our customers for many fair both in China or overseas.
Part 4-----FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2: How to pack and transport?
A: Nude with safty protection, only crane can be packed into containers for shipment.
And the truck mounted crane can be deliveried with ro-ro ship.
3: How long is the delivery time??
A: 35 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: one unit. For customized products, the MOQ can be Negotiated.

---
