Environmentally Friendly Two Shaft Shredder/Plastic Shredder/Tire Recycling Machine

Product Description

Company Profile
Qingdao Longyuan Baihong Machinery Equipment Co., Ltd. has taken the responsibility of recycling waste resources and creating a green ecological environment. Our company mainly produces fully automatic plants of waste tires, waste tire recycling and shredding production line, waste plastic pyrolysis machine and oil sludge pyrolysis machine. We integrate front-end treatment, mid-end pyrolysis plant and back-end carbon black grind and granulation. The production chain has achieved low energy consumption,full intelligence,and also achieved zero emission, zero pollution, and zero residue. There is the complete fulfillment of the reuse of the intelligent and environmentally friendly resources through pyrolysis of waste tires.
Product DescriptionThe waste tire recycling production line contains a variety of mechanical equipment specially designed for the treatment of waste tires, and the whole line has passed CE certification. Waste tires of a certain diameter can be recycled according to customer requirements. The line can effectively and automatically separate rubber, steel wire and nylon fibers. The whole production line adopts PLC control system, which is easy to operate and maintain, with low energy consumption and long service life.

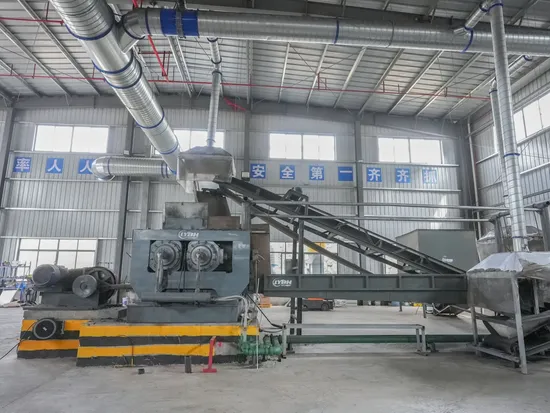

Rubber Shredder Parameter:

Name		610 type	710 type	810 type
No	Component	Technical	Technical	Technical
1	Helical roller	610mm *1000mm	710mm*1000mm	810mm*1200mm
2	Straight tooth roller	510mm*1000mm	610mm*1000mm	710mm*1200mm
3	20 mesh Rubber powder	1000-1200kg	1200-1500kg	1500-2000kg
4	Dimension	5400mm*2000mm*1400mm	6200mm*2260mm*1700mm	6400mm*2700mm*2400mm
5	Motor power	Y2-325M2-6 -200-220kw	Y2-355m2-6 -250kw-280kw	Y2-400m2-8 -315kw
Auxiliary machine
No	Component	Total power	Total power	Total power
1	main vibrating screen	29kw	31kw	48kw
2	secondary vibrating screen
3	9000 magnetic separator
4	rubber powder feeding belt
5	anti-tying belt machine
6	12000 magnetic separator
7	rubber powder collector

Features:
1. Slow speed high torque shredding principle.
2. Low dust and low noise operation and rugged low maintenance design.
3. High strength cutters and spacers manufactured from high quality, heat treated steel alloys are suitable for shredding tough materials.
4. Stand alone electrical control panel with Siemens PLC control system.
5. Tested, approved and certified to the applicable CE safety standards.
Production Process Diagram:
Double Shaft Shredder - Double DriveThe series of LYBH heavy-duty double-shaft shredder production line is a powerful tool for treating all kinds of solid waste including industrial hazardous waste. It enjoys a very high reputation and recognition in customers for its strong driving force and great stability.
The double-shaft shredder includes motor-driven version and hydraulic-driven version, and the installed power of each varies from 60-560KW. Furthermore, our company has a number of advanced technologies in the field of crushing and shredding, such as OTR engineering tire shredding, solid tire shredding and so on. High quality does not come from overnight. It attains reliability as product endorsement by the unremitting struggle of the R & D Department and decades of experience accumulation.Process:

Steel Wire Removal Process
1	Tire Steel Wire Drawing Machine	Remove the tire bead wire
Rubber Block Process
2	Shredder with rolling screen	Shredding the tire into ≤50mm rubber pieces
Wire separation
3	Rubber Grinder	Peel the capillary wire in the tire and obtain 1-5mm rubber particles
Rubber Granulating Process
4	Rubber Granulating Machine	Grind the rubber to 15-200 mesh as required
Dust Removal Process
5	Magnetic Separator	Remove wire from rubber particles
6	Fiber separator	Separation of fibers from tire particles
7	Dust removal equipment	Dust removal

Product Parameters

Double-shaft shredder	Crush waste tires of various sizes, using high alloy steel imported from Europe as cutting tools, with a detachable and interchangeable double row knife structure design to improve tool utilization rate
Steel wire separator	Cut the rubber block through moving knife and fixed knife,Qualified rubber particles and steel wires are discharged through the sieve
Conveyor	The material surface of the rack has undergone rust removal treatment
Magnetic separator	The type of magnetic separator is permanent magnet self dumping type, which can effectively screen the separated steel wire.
Vibrating screen	Separate the steel wire from the large rubber block/steel wire through vibration
Electronic control system	The main control cabinet and control platform are independent of each other, and the design of touch screen and button control mode enables operation,The control interface is more user-friendly and easy to operate

Products:
Strategic Partners:
Patents:
Certifications
Workshop:
Packaging & Shipping
Our Customers:
We are committed to providing high-quality tire shredders and excellent customer service. Contact us to learn more about our products and how they can benefit your tire recycling or waste management operations !
FAQQ: Why Choose Us?
1). We are manufacturer with own factory for many years with CE Certification
2). With professional design and sales team, we can serve you perfect solution with competitive direct factory price.
3). Our machines are popular among customers around the world ( India, Pakistan, Spain, Italy, Korea, Mexico, UK etc).
Q: What Is Our Service?
Pre-Sale Service
According to the customers' special requirements,we provide the most suitable project design, process design and the purchase program. Guide customers to choose the best and economical plant, recover investment within short time.
Sales Service
You are welcome to visit our factory to test the machine. And we will customize the equipment strictly according to your special requirements and arrange the timely delivery.
After-Sale Service
We will provide one year warranty for our machine.According to your need,we will dispatch our engineers to your factory to guide the installation, commissioning.

---
