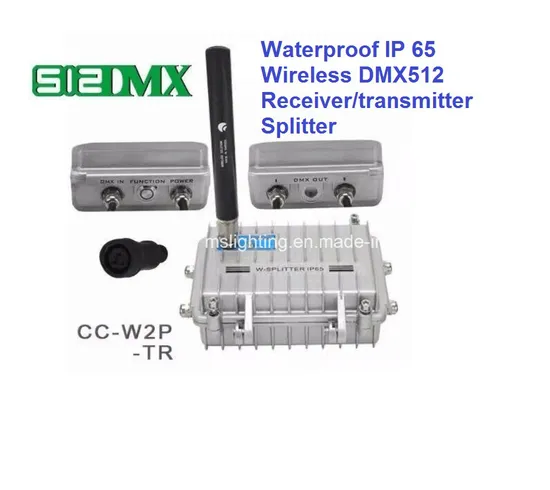

Waterproof Wireless Receiver/Transmitter DMX512 Splitter with 3pin 5pin DMX in/out Mixer DMX Distributor

Product Description

DMX Controller,Light Controller,Stage Light Controller,Control Box,RGB LED Controller,DMX 512 Controller,LED Controller, LED Controller,RGB Controller,Controiller For LED Light, DMX Distributor DMX Splitter
DMX Light Console
SPI Artnet Ethernet DMX Console

DMX Splitter is required for stable signal transmission
specially for a DMX chain with more than 32 DMX units or a distance of 150 meters

It serves as a signal distributor and booster. Each equipped with 3 pin or 5 pin XLR connectors for compatibility in any DMX setup and 100% electrical isolation between all in/outputs. The booster function analyses the incoming DMX data and re-constructs it before boosting it allowing it to be pushed further down DMX lines without signal problems. With LED indicators for both signal and power, it is easy to detect error for individual channel,Ideal for fixed installation, mobile show, rental, etc

DMX signal or controls DMX in distance and embraces the optical isolation.
DMX signal 1 input and 2output with the isolated DMX channel. The isolation both exists between the input and the output .
The case is 100% aluminum and waterproof, which can be utilized and available for a long time.

[FEATURES]
Stylish and durable aluminum housing;
DMX signal splitter and amplifier;
100% electrical isolation between all in/outputs;
100% electronic isolation between output/output;
LED indicator for signal and power ;
Termintor switch for DMX signal enhancements;
Easy installation: wall mount or desk top;
3pin or 5pin DMX In/Out,3pin or 5pin DMX Thru

ACCESSORY BILL:
Waterproof and wireless 2 channels splitter 1 pics
Manual guide: 1 book
Water proof male xlr : 2 bars
Water proof female xlr: 1bar
Tail block : 1 pics
Wall mount : 2 Pics


[Specifications]
Power input: AC230V 50Hz
AC110V 50Hz/60Hz
Consumption: 4W
DIigital Signal:DMX-512
Waterproof Level:IP65 2.4Ghz,
Size: 280 x 150 x 70mm 1PC/CTN
Weight: 1.7kgS
Connector pin designaions shall be as follows:
pin 1: signal common (shield) twine line
pin 2: dimmer drive complement (data 1-) blue line
pin 3: dimmer drive true (data 1+) gray lines
DMX output: connect to the DMX receiving device
DMX input: from the DMX transmitting device
One transmitter to one receiver
One transmitter to multiple receivers
Multiple transmitters to multiple receivers
1.Outdoor WD system setting
When the receiver function led is off, press the transimitter function button,both receiver and transimitter function led will flash fast,then match.
2.Cut Off connection:
Press receiver function button for 6s,the function led get off,then the connection with transimitter is off.
Press transimitter function button for 6s,all the receiver's function led get off,all the matched receivers is off connected to this transimitter.

3. Receiver:
If the function led is off,the receiver is matched to a transimitter.
If the function led flash or on,the receiver is matched.

4. Transimitter:
Press the function button, the function led flash, means the transimitter is in transimitting mode.
Set the transimitter as a receiver: Turn the power off, hold the function button, then turn on the power, after 1s, the function led get off, it is in receiver mode.
When the transimitter is in receiver mode, do the same to change to transimitter mode.

Packing Pic:

FAQ
1. MOQ:
Generally if you choose the different products,our minimum order qty.also will be different.
2. Payment:
Actually, payment would be preferred,We accept by T/T (Transfer / Payment), Western Union/Money gram, Pay pal, Cash,L/C...and so on.
3. Delivery time:
The goods need 2-3 days to be made after receive deposit.
4. Why choose us?
a. We are China Leading manufacturer. We are confident that with our products Quick delivery time, excellent quality and comprehensive superior service we can give our customers complete satisfaction.
b.100% QC inspection before shipping.
c. OEM is available.

After service
1.24 months warranty
2. If there is a problem with the product, please contact us and sent us the pictures or video for analyzing.Then we will guide you to fix it and provide the replacement parts for free if needed.
Our service
1. Reply your inquiry within 24 working hours.
2. Well-trained, experienced staffs answer all your questions.
3. OEM&ODM service.
4. Special discount are offered based on order quantity.
5. Exclusive and unique solution can be provided to our customers by our well-trained and professional engineers and staffs.
6. Your sales area, design and all your private information will be protected
