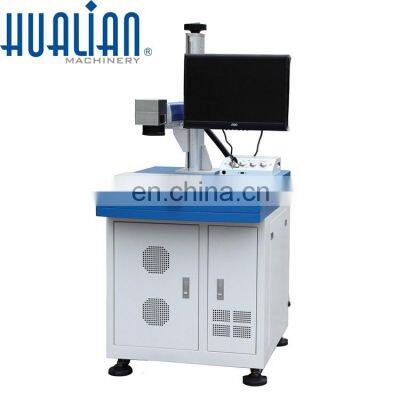

HUALIAN Fiber Laser Marking Machine (FLM-20)
Product Description
Description
FLM-20 fiber laser marking machine has introduced a new generation laser marking system by basing on 20 years’ experience in marking field and adopting latest technology.
The machine adopts fiber laser outputting, and through high-speed galvanometric scanning system to realize marking function.
The fiber laser marking machine is with characteristics of high conversion efficiency of electro-optic, air cooling, compact size, and excellent beam quality.
The machine can mark metal and some of nonmetal, it applies to some materials with higher requirement and higher precision and greater depth.
Product Feature
Marking with no consumption expense, with lower cost.Permanent mark, not easy to wear.Long life time of using.Powerful software, can be compatible with software files such as CorelDraw, AutoCAD, Photoshop, etc. Support PLT, PCX, DXF, BMP and so on, can directly use SHX, TTF font. Support automatic code, serial number, batch number, date printing, bar code, two-dimension code, automatic number jumping, etc.No need water cooling facility.With stable performance, compact size, low power.
Application Area
The fiber laser marking machine is with excellent beam quality.The machine can mark metal and some of nonmetal material.The machine mainly applies to the field with high requirement in smoothness and precision, for example, marking picture or word on electronic products, hardware products, watch, jewelry, IC, rubber button etc.
Parameters:
| Model | FLM-10
| FLM-20 | FLM-30
|
| Voltage(V/Hz) | AC 220/50 110/60 |
| Power(W) | 10 | 20 | 30
|
| Wavelength(nm) | 1064 | 1064 | 1064
|
| Beam quality | M2<2 |
| Marking speed(mm/s) | ≤ 7000 |
| Carving Depth(mm) | ≤ 0.3 |
| Min.Linear Width(mm) | 0.01 |
| Control Interface | USB
|
| Cooling Mode | Air cooling | Air cooling | |
| Field Size(mm) | 50x50/100x100/160x160/300x300(optinal) |
| Dimensions(LXWXH)(mm) | 600x720x1410
|
| Net weight(kg) | 90 |
