Dry Mix Concrete Gunite Shotcrete Spraying Machine for Swimming Pool Pond

Product Description

dry mix concrete gunite shotcrete spraying machine for swimming pool pond

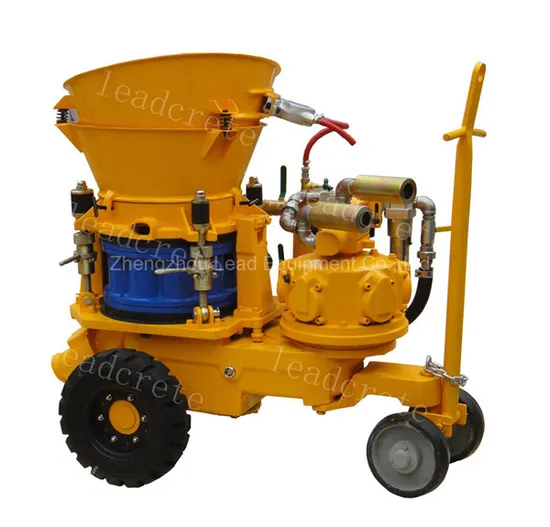

LZ-5 is LEC medium-sized shotcrete machine for the processing of dry mix. And it is widely accepted and used by so many contractors.
LZ-5 can be used for tunneling, mining operations, hydropower projects and hill side projects, etc.
LZ-5 is available in following versions:
Air motor drive, electric motor drive or diesel drive combined with skid or rail-wheel
Basic: Electric drive can be combined with tyre chassis
Extended (optional): Electric motor drive with variable speed gearbox, air motor drive Or diesel drive combined with Skid or Rail-wheel
Features:
Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.

type	air motor drive
Output Capacity	2.5-5.5m 3 /h
Max. Horizontal Conveying Distance	200m
Suitable Mix Ratio(Cement/Sand)	≤1:3~5
Max. Aggregate Size	Φ15 mm
Conveying Hose Inner Diameter	Φ51 mm
Conveying Pressure	0.2-0.4MPa
Air Consumption for conveying material	7~8m 3 /min
Air Motor Air Pressure	0.5MPa
Material Charging Height	1.1m
Rotor Speed	11rpm
Air Motor Type	TMH6A
Air Motor Air Consumption	7.5m 3 /min
Overall Dimension(length×width×height)	1.35×0.75×1.2m
Net Weight	720kg

---
