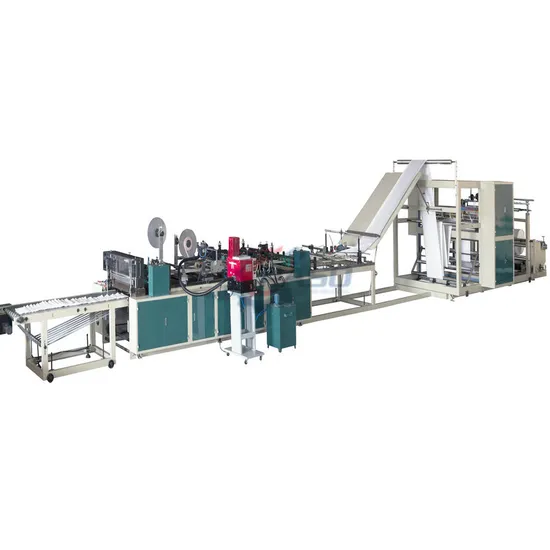

Online Compound Kraft Paper Bubble Film Envelope Bag Machine

Product Description

Product Description 1. This machine is customized to make laminating Kraft and PE film bubble envelope in one line or double lines. And the machines are also suitable for making polythene film, aluminized film and pearl film bubble envelope.
2. Method of making bags: First, make the laminating Kraft or PE film and bubble film together by heated laminating roller. Next fold the laminated material by folding devices. And then, seal the material by hot electric cross sealer. Finally cut the material and a standard laminated envelope is made.
3. This machine is a specialized one with high quality and simple operation method .It adopts advanced motion control technology. And this machine is controlled by computer from unwinding to cutting. The envelopes made by this machine are good-looking and strong.
Product Feature
1. Suitable material: laminating Kraft roll, polythene film roll, bubble film roll, polythene and bubble film roll, aluminized and bubble film roll, pearl and bubble film roll etc.
2.Mechanical executing speed:40~80 pieces/min(the actual speed of making bags may differ according to the size of bags, thickness of materials and time of fusing.
Product Parameters

Suitalbe material	kraft paper80~140g/sqm(coated)+PE bubble film (25~150gsm)
Max design speed	1~40meter/min(double speed making small bag)
Max bag length	750mm (including tongue of bag)
Max bag width	550mm (can design as per requirements)
Max reel width	1400mm
Max reel diameter	karft paper 1200mm; pe bubble film 1200mm;
Power supply	3-phase 4-lines AC 380V 50HZ 22KW
Weight	7500KG
Overall dimension(L*W*H)	21000*2500*2800

Detailed Photos

Packaging & Shipping 1.Packaging: wooden pallet or film wrapped (Fumigation wooden case usually)
2.Delivery time: 5-35/55 days after receiving deposit, depends on order and machine condition.
3.Exporting seaport: Ningbo port ; Shanghai port
4.Payment: we appreciate T/T 30% deposit, 70% balance paid before dispatching; Western Union;L/C acceptable if your goverment policy required
5.Trade terms: ExW,FOB,CFR,CIF,Door to Door, DDU, DDP,
Our Advantages
FAQ 1.Where is your factory Located
Our Factory Located in Ruian City ,Zhejiang Province ,China .
It is about 30minutes by air from Shanghai, around 5hours by train from Shanghai
2.What machines range we make & supply?
Our factory focus on manufacturing extrusion lines, complete bag production line, etc; OEM, ODM, with support of strong R&D team, we also help customer get best solutions for special equipments and plastic machinery;
3.How can we get satisfied machine in hand?
We will make test once machine in ready, to check every parts working condition and electrocircuit; will record relative photo and video for installation in your place.
3. What should we charge if we need engineer service in our country?
You should charge for the cost of our engineer's visa, air tickets, hotel, food, and also their salary (negotiable)
4. How long is your machine's warranty period?
All our machine have two years guarantee, starting from finished installation. we still keep service for whole life.
5. How could we do if the parts broken within warranty?
We would send the free replacement spare parts during the warranty date.

---
