Medium Sized 1700mm Working Width Good Reliability Potato Corn Wheat Combine Harvester Harvester

Product Description

No.	Item	Unit	Parameter Index
1	Structural style	/	Trailed
2	Overall dimension (length×width×height)	mm	6300×3750×2560
3	Machine weight	kg	3276
4	Tractor engine power	kW	≥73.5
5	Working ridges	/	2
6	Working width	mm	1700
7	Adapt to ridge width	mm	900
8	Digging depth	mm	150~300
9	Productivity of pure working time	hm2/h	≥0.33
10	Efficiency of lifting arm	t/h	60
11	Maximum loading height	mm	2940

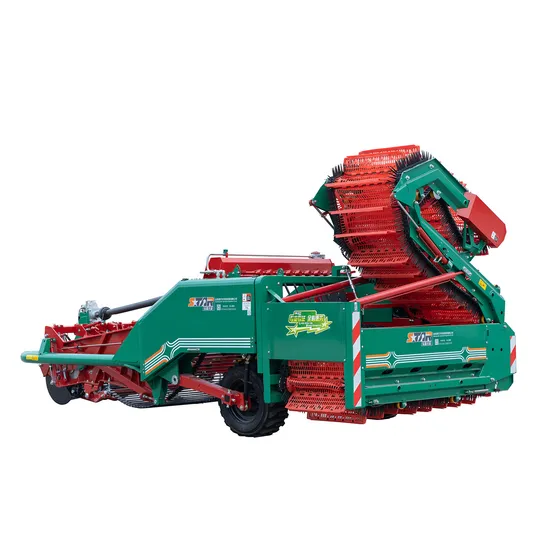

4UL-170C potato combine harvester can directly load potatoes into the truck, simplifying the work flow and reducing the labor intensity. the structure type is traction type. During work, the tractor pulls the combine harvester and excavates the digging shovel. At the same time, the potato-soil loosening and excavation depth limit are carried out by the contour-shaped deep-wheel, and the excavated potato soil is transported through the conveying net sieve for potato-soil separation and potato block transportation. In the process of potato tuber transport, the potato is separated, the clean potato after the potato-soil, potato-salt separation enters the potato transport device, and finally the clean potato is transported to the transport vehicle through the potato transport device, and the transport vehicle will The potato after the harvest is transported away. The potato combine harvester can realize the one-time excavation of potato, the separation of potato-soil, the separation of potato-salt, centralized collection and transportation, etc., and can harvest two ridges at a time, the working efficiency is above 0.33 hm2/h, and the loss is small and the skin breaking rate is low. Low, the potato is light and contains less impurities. The structure mainly consists of a frame, a depth limited wheel, a potato soil separation device, a clearing and soil removing device, a non-equidistant potato collecting device, a conveying device and a hydraulic system.
Detailed Photos
Certifications
Our Advantages
The potato combine harvester can realize the one-time excavation of potatoes, the separation of potato-soil, the separation of potato- salt, centralized collection and transportation, etc., and can harvest two ridges at a time, the working efficiency is above 0.33 hm2/h, and the loss is small and the skin breaking rate is low. Low, the potato is light and contains fewer impurities. The structure mainly consists of a frame, a depth limited wheel, a potato soil separation device, a clearing and soil removing device, a non-equidistant potato collecting device, a conveying device and a hydraulic system.

---
