The Reverse Radar System is designed to enhance safety and convenience for large vehicles by providing an intelligent solution for reversing and parking. This advanced system utilizes sensors to detect obstacles behind the vehicle, displaying their position and distance on an LED screen. This allows drivers to make informed decisions while reversing, ensuring safer and more efficient driving. The system is known for its quick response, high sensitivity, and adaptability to various environmental conditions, making it an ideal choice for large engineering vehicles and trucks.
Product Features
Real-Time Obstacle Detection: Detects obstacles within a range of 0.4 to 6.0 meters, with a display resolution of 0.1 meters.
Wide Detection Angle: Each sensor covers a 60° ± 20° angle, ensuring comprehensive coverage.
High Environmental Adaptability: Operates efficiently in extreme temperatures ranging from -30°C to +80°C.
Advanced Display System: LED screen clearly shows the position and distance of obstacles, accompanied by audible alerts.
Multi-Directional Monitoring: Four sensors provide precise detection in multiple directions, ensuring accurate obstacle location.
Durable and Reliable: Waterproof, shockproof, and resistant to interference, suitable for harsh working environments.
Low Power Consumption: Rated power of less than 5W, with a working voltage of DC 12-24V.
Product Components
Component
| Quantity
| Model
| Remarks
|

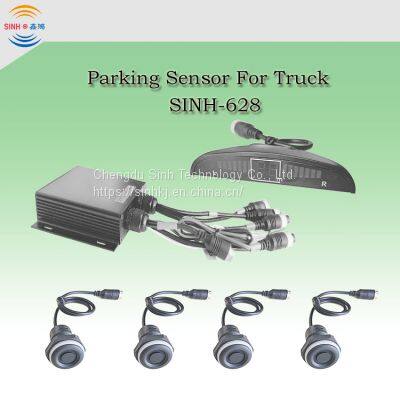

Main Control Unit
| 1
| SINH-628
| Core processing unit
|
LED Display
| 1
| -
| Visual distance indicator
|
Sensors
| 4
| 27T
| High-sensitivity probes
|
Product Manual
| 1
| -
| Installation guide
|
Certificate of Approval
| 1
| -
| Compliance certification
|
Technical Specifications
Working Voltage: DC 12-24V
Power Consumption:<5W
Detection Range: 0.4 to 6.0 meters
Display Resolution: 0.1 meters
Detection Angle: 60° ± 20° per sensor
Operating Temperature: -30°C to +80°C
Key Benefits
Accurate Detection: Effectively avoids false alarms and can detect small objects as small as 30cm x 30cm x 30cm.
Clear Visual and Audio Alerts: The LED display and beeping sounds provide real-time feedback on obstacle distance and location.
24/7 Monitoring: Continuously monitors the rear of the vehicle, ensuring safety at all times.
Easy Integration: Automatically activates when the vehicle is turned on, requiring no additional setup.
Robust Design: Built to withstand tough conditions, including water, shocks, and electromagnetic interference.
Installation Guidelines
Ensure each sensor is correctly aligned and locked in place.
Use extension cords if necessary, ensuring they are securely twisted and locked.
Install sensors at a height of 85 cm or more from the ground to avoid false alarms.
Avoid installing sensors near protruding objects; if unavoidable, use mounting brackets.
Why Choose Our Reverse Radar System?
Enhanced Safety: Reduces the risk of accidents while reversing, especially in blind spots.
User-Friendly: Simple installation and intuitive operation.
Versatile Application: Suitable for a wide range of large vehicles, including trucks, buses, and construction equipment.
Certified Quality: Comes with a certificate of approval, ensuring compliance with industry standards.
Order Now and Drive with Confidence!
Upgrade your vehicle with our state-of-the-art Reverse Radar System and experience unparalleled safety and convenience. Contact us today for more details or to place your order!
Installation instructions：
Item
| Character
| Specification
|
1
| Sensor size
| Φ27mm
|
2
| Working frequency
| 58KHz
|
3
| Detect distance
| Max 800cm
|
4
| Sensors
| 4
|
5
| Sensor directional characteristic
| Horizontal distance 60CM 110°±20°, Vertical distance 60CM 40 °±20
|
6
| Electromagnetic compatibility level
| B
|
7
| Waterproof properties
| IP67
|
Item
| standard content
| Parameter
|
1
| Rated Voltage
| DC12- 24 V
|
2
| working voltage
| DC12- 24 V
|
3
| Sensor working voltage
| DC 6-18V
|
4
| working current
| 100mA MAX
|
5
| Working Temperature
| -30 ~ +80 ℃
|
6
| Storage Temperature
| -40 ~ +85 ℃
|
7
| waterproofing grade
| IP69
|
8
| Detection Method
| Direct/indirect detection
|
>>
