US$300.00-500.00
|
5 Pieces
(MOQ)
|
Basic Info.
Application Field
Agriculture
Farming Policy
Dry Cultivating Machinery
Operation
Soil Preparation Machinery, Movable Operation
Arbor Configuration
Vertical Shaft
Transport Package
Wooden Case
Production Capacity
10000PCS/Month
Packaging & Delivery
Package Size
98.00cm * 57.00cm * 80.00cm
Package Gross Weight
160.000kg
Product Description
Product Description

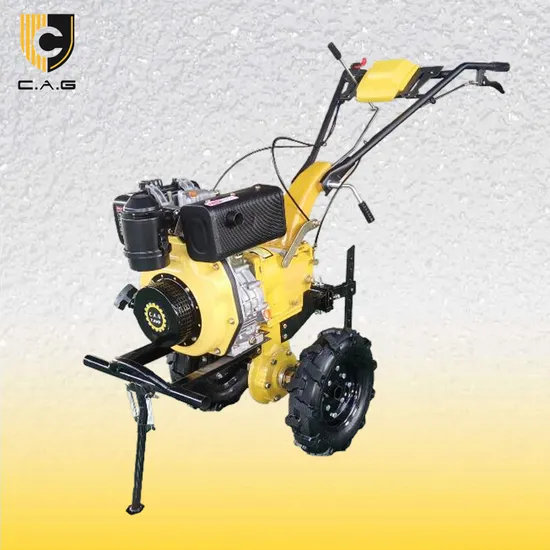

CAG Super Duty Tiller Cultivator gives you complete control over tilling your land. The Tine Shield design offers extra protection and the Tiller has undergone thorough testing and meets CE certification standards.
POWER THAT MAKES THE DIFFERENCE
- This Tiller is equipped with a powerful CAG 7HP single-cylinder Diesel engine, which provides a great power-to-weight ratio. It has a recoil starter and a centrifugal friction clutch. The maximum rotating power is 3600 RPM and the maximum tine speed is 100 RPM, with a 30:1 reduction ratio.
ADVANCED DESIGN
The compact design features 6 steel, replaceable, and adjustable forward-rotating tines with a diameter of 14 inches. Detailed Photos
• An efficient air cleaner system • Compact in structure and small in size • Multi-choice PTO shafts(keyway shaft, thread shaft and taper shaft) • Recoil or electric start, with oil bath air filter • lower operation temperature, powerful drive and reliability and durability, and it saves more oil. • Cast iron casing does not only effectively improve lubrication but also makes the engine more wear-resistant and prolongs engine life. • Automatic alarm and stop at a low oil level, which prevents the engine to work at low oil level and gives more protection to the engine. • Metal cam and forged crankshaft make the engine more reliable and durable.
Technical Specification:
| CAG MINI TILLER DATA |
| Model | DT610G |
| Engine | 7 HP (178FE) / GX200 |
| Tilling Width | 1050mm |
| Tilling Depth | 120-360mm |
| Transmission type | Direct gear driving |
| Speed | 2Fwd+1Rev |
| Starting | Manual/Electric Starter |
| Gear Box material | Cast Iron |
| Gear Shifting | -1, 0, 1, 2 |
| Blade | 3pcs*4 groups |
| Tire | 400-8in |
>>
