25mm 2/3" 10MP Machine Vision FA

Product Details

Product Description

Product Description
Homepage Links:
/products_detail.asp?id=1342&cataid=196&Cataupper=119&list=5

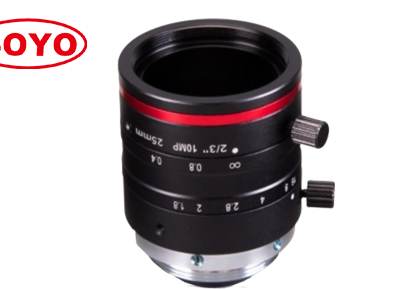

25mm 2/3" 10MP Machine Vision FA<0.15% Non-distortion Industrial Face Recognition 4K Camera Megapixel Lenses
High resolution : 10 megapixel cover all 4K & 1080P
Large format: 2/3" size covering 2/3", 1/1.8", 1/2" camera
Big aperture : F1.8 big aperture makes imaging far better
Low distortion : 0.15% low distortion for AI
Compact size : < Φ32mm diameter compact size
Application : Automation, machine vision, medical, life science, ITS, SMT, AOI.

Model		SMV2518-10M
Resolution		10 Megapixel
Format		2/3"
Pixel size		3.45μm*2.4μm
Focal Length		25mm
Max Image Circle		Φ11mm
Aperture (Close)		F2.0 Manual iris
Angle of View (°) D*H*V	2/3"	25*20*15
	1/2"
M.O.D		0.15m
Relative Illumination		84%
Distortion		0.15%
B.F.L		10.5mm
CRA		13.4°
Size		Φ32*34.1mm
Filter Size		M27*0.5
Mount		C
Weight		75g

Email: fany@soyocctv.com Skype/wechat: soyocctv
Warranty: 5 Years
Logistic : DHL, TNT, Fedex, UPS, SF etc.
( Suggest to Basler, Baumer, Hikvision )
( A Best MTF Chart )

---
