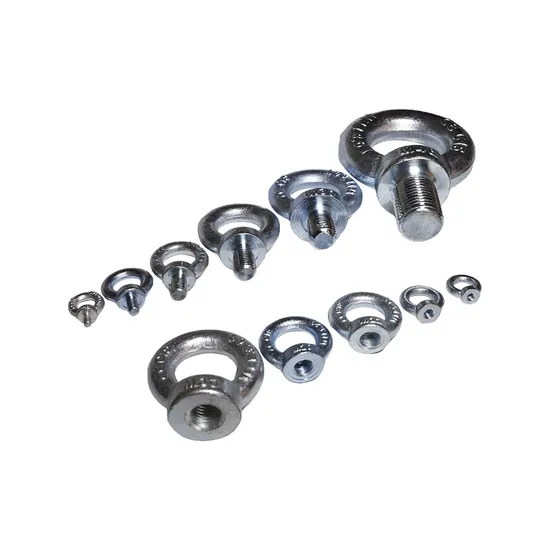

DIN580 DIN444 Forged Stainless Steel Lifting Eyebolt

US$1.00 100 Pieces (MOQ)

Basic Info.

Model NO.
Various models can be customized.
Connection
Hinged Bolts
Head Style
Round
Standard
DIN
Grade
10.9
Application
Machinery, Chemical Industry, Environmental, Building
Finish
Hot Galvanizing
Transport Package
Wooden Box
Specification
M6-M64
Trademark
chaoshan
Origin
Handan China
HS Code
7326909000
Production Capacity
200tons/Month

Product Description

Product details
High Strength Carbon Steel Drop Forged Galvanized Lifting Eye Bolt DIN 580 Minimum breaking load
Thread size M8 M10 M12 M16 M20 M24 M30 M36

Minimum breaking
load(zxially ) kN
8.2 13.8 20 41.2 70.6 105.9 188.3 270.7

Minimum breaking
load(Angular,at 90°) kN
4.1 6.8 10 20.6 35.3 53 94.2 135.4
Thread size M42 M48 M56 M64 M72*6 M80*6 M100*6

Minimum breaking
load(zxially ) kN
370.7 506 676.7 941.4 1176.8 1647.5 2353.6

Minimum breaking
load(Angular,at 90°) kN
185.4 253 338.4 470.7 588.4 823.8 1176.8

company introduction
Hebei Chaoshan Fastener Co., Ltd,. was established in 1993, nestled within the Longquan Standard Parts Industrial Zone, Yongnian District, Handan City, Hebei Province. Our expansive facility spans over 10,000 square meters, reflecting our commitment to growth and excellence.
Specializing in the production of LB type brake beams, cross beams, train brake beams, safety chains for cross braces, hand and foot brake chains, chain assemblies, K2 suspension chains, hook lifting chains, and an array of beam frame accessories. Our portfolio extends to vehicle handrails, power fittings, U-shaped rings, and bolts, including GB798-88 live joints, and a host of unique hot-forged products.
Years of dedication and innovation have propelled us to a leading scale, boasting a skilled workforce of 115 employees. Our expertise spans production management, technical guidance, mold making, sales, and after-sales service. Our accolades include the Famous Trademark of Hebei Province, Contract-abiding and Creditworthy Enterprise, and Demonstration Unit.
Our guiding principle of "honesty-based, steady operation" fuels our participation in healthy market competition, establishing the "Chaoshan Fastener" brand as an emblem of reliability and trust.
For any fastener-related needs or inquiries, reach out to us at Hebei Chaoshan Fastener Co., Ltd., where excellence and customer satisfaction are our top priorities.
