Automatic Feed Metal Drilling Vertical Radial Drilling Machine Hc-1600h

Product Description

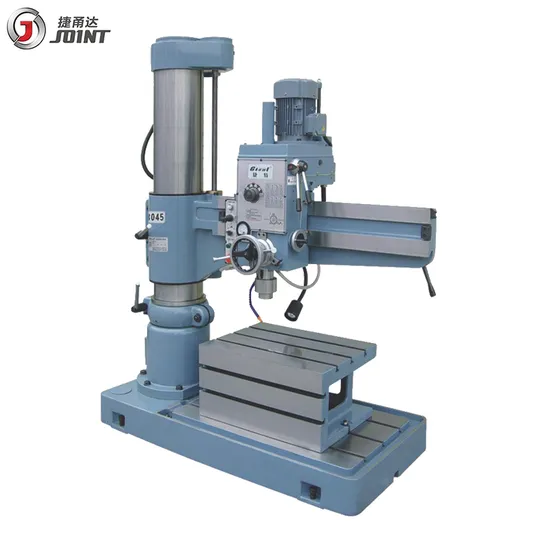

Automatic Feed Metal Drilling Vertical Radial Drilling Machine HC-1600H
1. Strong drilling ability, Mehanna tough cast iron, high temperature tempering, rigid and tough.
2. The gear is made of alloy steel, by quenching and carburizing heat treatment.
3. The spindle is made of chrome-molybdenum, diamond,outstanding durability.
Specification

Model			HC-1600H
Distance between spindle centerandcolumn center		max	1600
		min	350
Distance between spindle nose to base		max	1215
		min	320
Diameter of spindle		E	350
Height of column		F	2600
Max distance between spindle head to base		G	2860
Floor space		HXI	2380*980
Longitudinal travel of spindle head		K	1250
Up and down travel of radial ram		L	580
Up and down travel of spindle		M	315
Spindle hole		MT	No.5
Size of worktable		mm	1650*980
Motor of spindle		kw	3.75(5HP)*4P
Elevator motor of radial ram		kw	1.5(2HP)*4P
Motor for clamping		kw	0.375(1/2HP)*4P
Spindle feed range		mm/rev	0.04-3.2
		Grade	16
Spindle rotation		60HZ rpm	40-2550
		50HZ rpm	25-2000
		Grade	16
Working capacity		Drilling	55
		Taping (S45C)	42
Net Weight		kg	3500
Gross Weight		kg	3800
Dimension		mm	2650*1280*2500

Company Profile
Shenzhen Joint Technology Co., Ltd. specializes in R&D and manufacturing mold processing and machinery parts processing equipment, we developed high quality and high-tech research, development, manufacturing, service team and management system, and expanded products to more than 11 series from milling machines, to machine center,mechanical arm, automation. With the exceptional quality products and distinct brand reputation, our products are sold to more than 40 developed cities all over China, and also to more than 20 countries all over the world across Asia, Europe and America.Our company takes the high quality product as orientation, R&D ideas is to provide customers with the most suitable quality products, became a professional machine tool manufacturer with a complete product line of mould and parts processing machine tool and strong tailor-made design capability in China.
Core strengths
1. Standardize processes and operating mechanisms, high standards production and testing software and hardware - Ensure stable product supply and service support.
2. We insist in-depth research and technological precipitation for more than 20 years - Promote rapid innovation and progress in products and technology.
3. Comprehensive information management systems such as ERP and CRM - JOINT has formed a efficient operation and continuous improvement system.
4. Integrity, collaboration, innovation, and win-win spirit - we JOINT has established a strong and stable supply chain, and a large long-term win-win customer base.
Special advantages
1. Provide more practical customized products
2. Provide CNC product applications support
3. Provide integrated solution for auto production line
4. Provide integrated design of mold, and parts processing production line
Qualifications and honors
1. National High-tech Enterprose
2. Shenzhen famous brand "JOINT"
3. Member of China Quality Association
4. Member of China Machine Tools Association
5. Vice-chairmen of Shenzhen Machinery Association
6. CE certification on milling machine, grinidng machine and machine center.
7. More than 150 patents on invention, utility model patent and software copyright etc.
8. Guangdong famous trademark
FAQ
Q1: Are you trading company or manufacturer?
A1: We are factory.
Q2: What is your terms of payments?
A2: 30% as deposit, 70% should be paid before delivery.
Q3: How can I choose the most suitable machines?
A3: Please tell us your requirements of the machines, or you could send us the products drawing, our engineer can help to choose suitable model for you.
Q4: What is the package? Is it suitable for shipment?
A4: Machine will be packed by exporting standard package, water proof and anti-rust. It is very much strong for oversea transportation.
Q5: How long is the warranty for machines?
A5: Warranty time is 12 months. We will supply the repair parts in this warranty time. The charge of repair parts will be free due to its quality problemin this guarantee.

---
