| US$5,800.00-6,600.00 | 1 Piece (MOQ) |

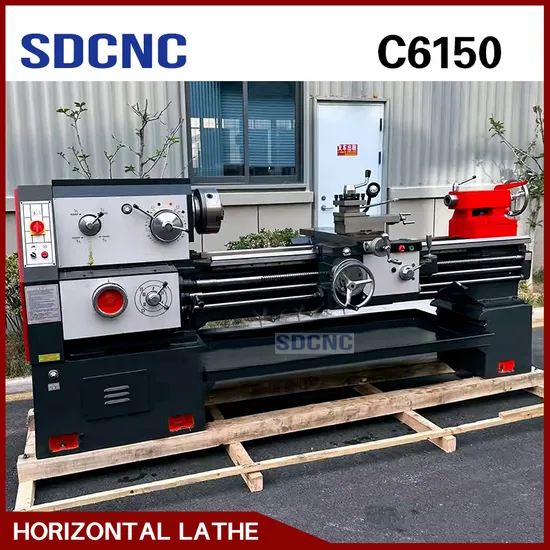

| SPECIFICATIONS | Units | C6150 |
| Swing over bed | mm | 500 |
| Swing over cross slide | mm | 330 |
| Swing over gap | mm | - |
| Distance between centers | mm | 750/1000/1500/2000/3000 |
| Spindle bore | mm | 52(Optional:80) |
| Spindle bore taper | - | MT6(Optional:Metric 1:20) |
| Spindle speed steps | - | 9 |
| Spindle speed range | rpm | 40-1400 |
| Cross slide travel | mm | 250 |
| Top tool post travel | mm | 95 |
| Tool size | mm | 20 x 20 |
| Longitudinal feeds range | mm/r | 0.0832-4.6569 |
| Cross feeds range | mm/r | 0.048-2.688 |
| Kinds of metric threads | kinds | 19 |
| Range of metric threads | mm | 0.25-14 |
| Kinds of inch threads | kinds | 28 |
| Range of inch threads | T.P.I. | 2-40 |
| Kinds of threads module | kinds | 17 |
| Range of threads module | MP | 0.25-3.5 |
| Tailstock quill diameter | mm | 65 |
| Tailstock quill taper | - | MT5 |
| Tailstock quill travel | mm | 130 |
| Main motor power | kw | 5.5 |
| Coolant pump motor | kw | 0.09 |
| Weight for 750 | kg | 1250 |
| Weight for 1000 | kg | 1350 |
| Weight for 1500 | kg | 1550 |
| Weight for 2000 | kg | 1750 |
| Weight for 3000 | kg | 1950 |
| Dimension for 750 | mm | 2200x1140x1800 |
| Dimension for 1000 | mm | 2400x1140x1800 |
| Dimension for 1500 | mm | 2900x1140x1800 |
| Dimension for 2000 | mm | 3400x1140x1800 |
| Dimension for 3000 | mm | 4400x1140x1800 |
