X6330 Turret Milling Machine New Product Provided Tool 380V High Productivity

Product Description

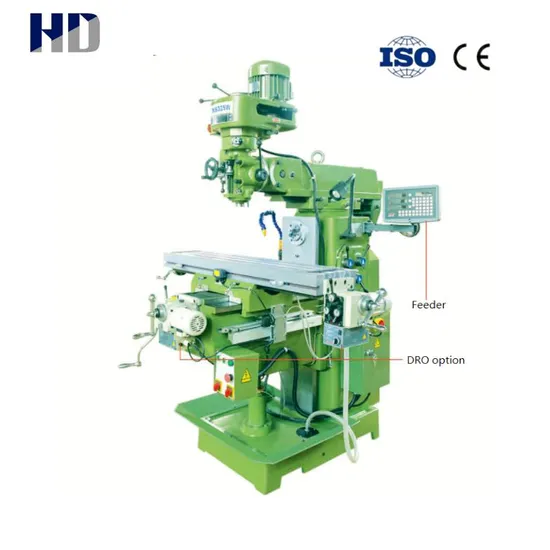

Product Picture
Specification Parameter

Specification	Unit	XU6325W	XU6330W
Table Size	mm	1270*250	1370*305
T SIotS(N/W/D)		3/16/65	3/16/65
Longitudinal travel	mm	750(850 manually)	800
Cross travel	mm	400	380
Vertical travel	mm	400	400
Quill Trave	mm	127	127
Distance between spindle center and column	mm	155-635	155-635
Distance between spindle nose and table top	mm	0-460	0-460
Arm Travel	mm	400	500
Milling Head tilting		90°(Left&Right);45°(Front&Back)	90°(Left&Right);45°(Front&Back)
Spindle taper		R8(V);NT40(H)	R8(V);NT40(H)
Spindle speed	r/min	66-4540(V);40-1300(H)	66-4540(V);40-1300(H)
Power of spindle motor	kw	2.2 kw(V);3KW(H)	2.2 kw(V);3KW(H)
Max. table safety load	kg	350	350
Machine Diamension	mm	1750*1530*2340	1750*1650*2340
Net. Weight	kg	1380	1550

Company Profile

Dalian Haidi Machinery Co.,Ltd is a professional manufacturer that specializes in the development, research and production of single-column vertical lathe, double-column vertical lathe, horizontal lathe, radial drilling machine, slotting machine, boring-milling machine, machining center, customized special machine tool, and other equipment. The researched products by our company have such advantages as a great variety, complete specification, advanced technology and outstanding quality.
Our company, founded in June 2007, has a registered capital of RMB 60 million Yuan and covers a building area of 30,000 square meters. Now we have more than 200 staff members, including 11 senior engineers, 8 senior managerial staff,over 160 technical workers.
Our own casting factory was established in 1983 and has an annual output of over 20,000 tons. Our company is the largest enterprise that specializes in the casting of machine tool in southern Liaoning.In the meantime, it has offered great support to speed up our company's product research and production and made great contribution to making sure products are supplied to customers in the shortest duration.
Our company follows the principle of "independent innovation, govern enterprise by good virtue and prosper enterprise by good faith". We shall work hard persistently to make innovation and breakthrough and strive to become a first-rate enterprise. We would like to work hand in hand with all our friends toward a brilliant future.

Exhibition Photos
Certificate
Packing&Shipping
