Small Size High Quality Integrated Grinding Machine Surface Bench Grinder Machine Mj7115

US$1,300.00-1,400.00 1 Piece (MOQ)

Basic Info.

Model NO.

MJ7115

Automatic Grade

Manual

Cylindrical Grinder Type

Universal Cylindrical Grinder

Precision

High Precision

Certification

CE, ISO 9001

Condition

New

Model

Mj7115

Longitudinal Stroke

340mm

Lateral Stroke

170mm

Gringding Height

210mm

Motor Power

550W

Transport Package

Wooden Case

Specification

ISO9001: 2000 TUV CE

Trademark

WHITE EAGLE

Origin

Made in China

HS Code

8460190000

Production Capacity

5000sets/Month

Product Description

FEATURES:
1)Integrated grinding head of high quality ,high rigidity and accuracy
2)Small size ,light weight ,easy operation and maintenance
3)Centralized lubricaiton for oil pump
Specification:

SPECIFICATIONS	Metric	Inch
Longitudinal stroke	340mm	14
Lateral stroke	170mm	7
Grinding height	210mm	8
Area of table	152mm×304mm	6×12
Width of T-slot	1-12mm	1-0.47
Cross feed per graduation	0.02mm	0.001
Cross feed per round	2.54mm	0.1
Vertical feeds per graduation	0.025mm	0.001
Vertical feed per round	1.25mm	0.05
Roughness	1.6μm
Grinding wheel	180mm×32mm×13mm
Power of motor	0.55kw
N. W. / G.W.of machine	210/258kg
N. W. / G.W.of stand	30/54kg
Overall dimension of machineL×W×H	930×780×730mm
Case dimension of machineL×W×H	930×780×1480mm
Case dimension of standL×W×H	720×550×550mm

Standard configuration
Grinding wheel ,grinding wheel adaptor ,grinding wheel dresser ,pad irons ,tools
Special configuraiton
Stand ,permanent magnetic chuck,precision flat vise

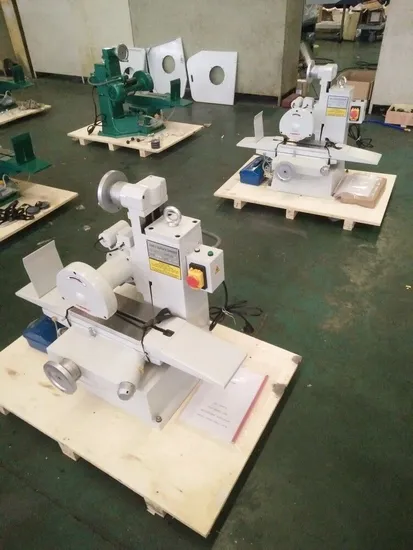

Product display:
