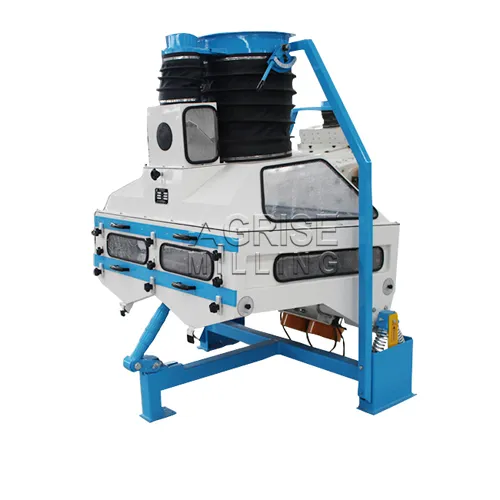

Tqsx100 Suction Type Grain Maize Corn Wheat Soybean Paddy Seed Gravity Destoner Machine

Product Description

Product Description
TQSX suction type gravity destoner is mainly applicable for grain processing factories to separate the heavy impurities such as stone, clods and so on from maize,wheat,beans,paddy, etc.. The destoner exploits the property difference in the weight and suspension velocity of grain and stone to grade them. It uses the difference of specific gravity and suspending speed between grains and stones, and by means of air stream passing up through space of grain kernels, separates stones from grains.
The heavy impurities such as stones having the same size and shame with grain kernels are in the lower layer and move to the stone outlet by means of directional, slope and reciprocating movement of stoning sieve plate, while grains floating in the upper layer roll under self gravity to discharge outlet, so as to separate from grains the stones having the same size and shame with grain kernels. It also can be used to separate heavy impurities from other grains like soybean, rapeseed, peanut, etc. in grain processing. The stones are dropped to the ground and the grain flow in the air, and then the grain rolls into the discharge pipe because of weight.
Features
1. High stone-removing efficiency; with shutter sieve, it is more suitable for some grain processing plants where there are more stones content in raw grain;
2. The inclination of shutter sieve varies from 100 to 140 depending on the different feedstock to attain the best processing effect;
3. With external fan, full sealed machine, and no dust outside machine, thereby gaining the end of environmental protection;
4. Adopt reciprocating mechanism with rubber bearing, less vibrating, low noise;
5. Adopt self-aligning bearing with looseness prevention device so as to make mechanical property more steady.

Product Parameters

Model	Capacity (t/h)	Screen Width (cm)	Screen Dip Angle (°)	Air Suction (m3/h)	Power (kW)	Weight (kg)	Size (mm)
TQSF60	3-5	60	5-9	4500	2x0.25	280	1450x876x1800
TQSF80	5-7	80	5-9	6000	2x0.25	340	1450x1046x1800
TQSF100	7-9	100	5-9	8000	2x0.25	400	1500x1246x1900
TQSF125	9-11	125	5-9	10200	2x0.25	500	1470x1496x1900
TQSF150	11-14	150	5-9	12000	2x0.25	600	1580x1746x1900
TQSFB125	15-18	125	5-9	12000	2x0.55	650	1649x1715x2083
TQSFB150	18-20	150	5-9	15000	2x0.55	760	1649x1964x2083
TQSF175	14-18	175	5-9	15000	2x0.25	760	1470x1990x1900
TQSF200	16-20	200	5-9	17000	2x0.25	1000	1470x2292x1900
TQSF250	20-22	250	5-9	20400	2x0.25	4050	1470x2835x1900

Sucessful Cases
Flour Milling Machines

Packaging & Shipping

Welcome to contact us for more detailed information and offer!

---
