Product Description
Product Description
High Quality Wood Briquette Machine/charcoal machine/
Saw Dust Briquette Machine made in China
Introduction of Wood Briquette Machine :
Wood Briquette Machine is used to crush raw materials, such as wood sawdust, peanut shell, corn cod, branch and other wood things into granulate, which is within 10mm.After crushing, mould them in the rotary dryer, and then carbonize them in the corbonization furnace.
Wood Briquette Machine Production Line
1. Crush the raw material into small pieces (diameter is about 3-5mm)
2. Dry the material by machine or dried it in the sun , till the moisture is less than 12%
3. Put the material into feedlet of briquette machine
4. Produce the briquette stick from biomass material without any binder.
4. Carbonized the briquette stick Features: The extruded wood block can be used as fuel for briquette boilers or boilers for heating.
data:
Diameter of briquette
| Motor
| Capacity
| Inlet diameter
| Dimension
|
50mm
| 11kw
| 120-150kg/h
| ≤5mm
| 1.7×0.66×1.5m
|
50mm
| 15kw
| 180-200kg/h
| ≤5mm
| 1.7×0.66×1.5m
|
50mm
| 22kw
| 220-300kg/h
| ≤5mm
| 1.78×0.66×1.53m
|
60mm
| 15kw
| 180-200kg/h
| ≤5mm
| 1.7×0.66×1.5m
|
70mm
| 18.5kw
| 200-250kg/h
| ≤5mm
| 1.75×0.66×1.5m
|
80mm
| 18.5-22kw
| 220-300kg/h
| ≤5mm
| 1.78×0.66×1.53m
|
Features of Wood Briquette Machine
1. Stick shape with different diameter.
2. The density, strength and hardness of products are very high.
3. Our briquette machine with higher capacity and lower energy consumption.
duction moisture is less tahn 12% ,raw material size below 3-5mm
5.This series of briquette machine is a new type of wood briquette machine,the finished products are more solid.
6. This Sawdust Briquette Machine with automatic temperature control system is designed to produce high density wood briquette stick from biomass.
spare parts :

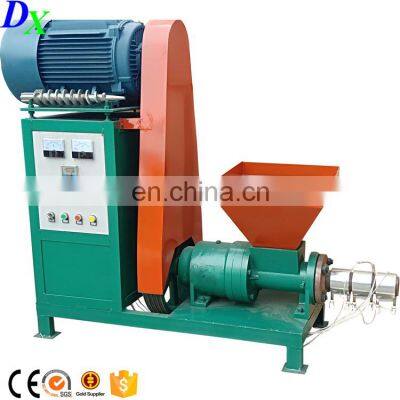

The pictures of the wood briquette machine:
Packing of wood briquette machine:
>>
