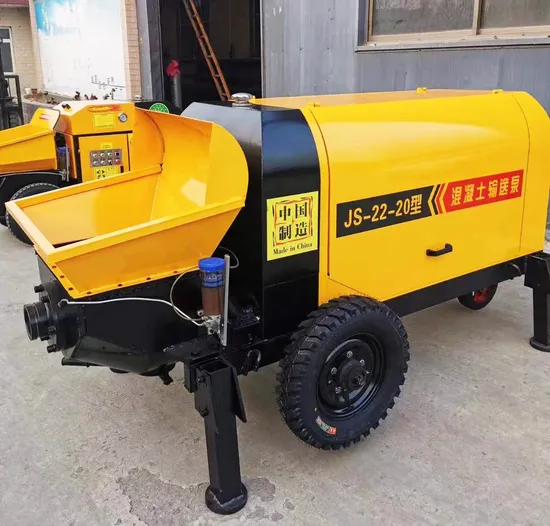

Cost-Effective High Precision Concrete Pump Truck Electric Mini Concrete Pump

Product Description

Product Description

Work efficiency	6-8m³/h
Power	15kw
weight	700kg
Max Aggregate Size	20mm
Diameter of Pipe	800mm
Vertical Distance	20m
Horizontal Distance	60m
Bore/Stroke	120/400mm

Application:
This machine is widely used in high-rise building mortar and fine aggregate concrete pumping, secondary structural column grouting, reservoirs, hydropower stations, ports, docks in a variety of pressure grouting, foundation treatment, soft foundation, grouting, tunnels, backfill grouting bolt support in mine construction. Secondary structural column irrigation, and slope spray anchor support. Characteristics :
The use of S-tube distribution valve to convey the small aggregate concrete, mortar etc. Main pump uses deformation piston pump, high efficiency, strong pressure. Hydraulic system uses an independent three-loop control, high reliability glasses panel, cutting ring uses carbide, wear-resistant, long life. Pumping mechanism uses dual-piston, advanced performance, good continuity.
Product Details
Product Application Scenarios
Product Photos
Company Profile
Certifications
FAQ
Q1: Are you a manufacturer?
A1:Yes, we have been offering specialized products in this field for 22 years.
Q2:How do you pack these products?
A2:Usually packed according to export standard or your requirement.
Q3:Is it customizable?
A3:Yes, according to your requirements.
Q4: After-sales service?
A4:24-hour technical support by phone, email.
Q5:What is your lead time?
A5:Spot goods usually take 7-10 days, and customization takes 15-25 days.

---
