EU Standard 300kg 600kg Customized Electric Suction Cups Sandwich Panels Vacuum Lifter

Product Description

EU Standard 300kg 600kg Customized Electric Suction Cups Sandwich Panels Vacuum Lifter
Product Description

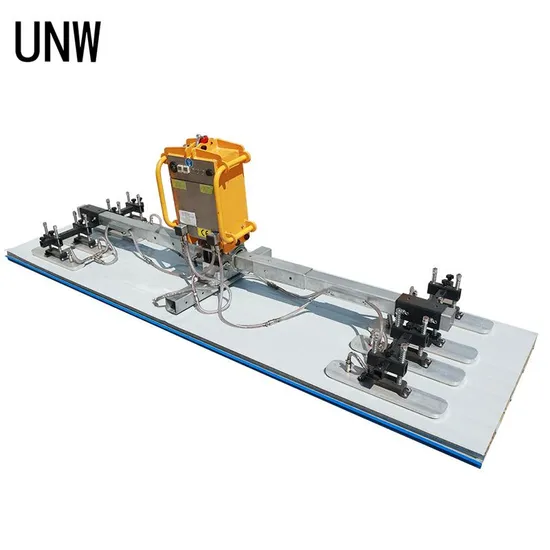

UNW Brand Small suction cups Vacuum lifting machine is a fast, safe and convenient automatic equipment. It uses the principle of vacuum adsorption and uses the vacuum pump as the vacuum source to generate a vacuum at the suction cup end, so as to firmly hold various workpieces (such as glass, iron plates, etc.) Pick up, and transport the workpiece to the designated position through the rotatable mechanical arm.
Features and Advantages:1. Manually rotated 360° in the vertical side, and manually rotated 90° in the horizontal side, but taking and releasing by electric2. Both ends of the suction cup holder are retractable, suitable for occasions with large size changes3. Imported oil-free vacuum pump, valve4. Efficient, safe, fast and labor-saving5. Accumulator and pressure detection ensure safety6. Suction cup position adjustable and can be closed manually7.Usually copperated with bridge crane to use in glass deep processing and handling job, or with cantilever crane to use in glass curtain wall installation job.
Product Parameters

Roof Panel	Lifter Length	Panel Length	Ext Beam Qty	Max Load	Max Load on Traverse	Suction Pad	Pad Size/Load
						Qty
BGL2650	2650	12000	2	300	800	8	110*530/75kg
BGL4450	4450	14000	4	300	500	8	110*530/75kg
BGL6250	6250	16000	6	300	300	8	110*530/75kg
BGL4450L	4450	14000	4	300	800	8	110*530/75kg
BGL6250L	6250	16000	6	300	500	8	110*530/75kg
BGL8050L	8050	18000	8	300	500	8	110*530/75kg
BGL9850L	9850	20000	10	300	500	8	110*530/75kg
BGL8050LD	8050	18000	8	450	500	12	110*530/75kg
BGL9850LD	9850	20000	10	450	500	12	110*530/75kg
BGL1525LDD	15250	24000	16	500	500	16	110*530/75kg
BGL1705LDD	17050	26000	18	500	500	16	110*530/75kg
Wall Panel	Lifter Length	Panel Length	Ext Beam Qty	Max Load	Max Load on Traverse	Suction Pad	Pad Size/Load
						Qty
BGL850V2	850	12000	0	200	800	2	150*490/100kg
BGL850V4	850	12000	0	400	800	4	150*490/100kg
BGL2950C	2950	15000	2	400	800	4	150*490/100kg
BGL4750C	4750	17000	4	400	500	4	150*490/100kg
BGL850H2	850	12000	0	200	800	2	150*490/100kg
BGL850H4	850	12000	0	400	800	4	150*490/100kg
BGL1150HL	1150	13000	0	400	800	4	150*490/100kg
BGL2950HL	2950	15000	2	400	800	4	150*490/100kg

Detailed Photos
Application
Belift Brand Small Vacuum lifting machine is widely used in glass processing, glass loading and unloading, glass curtain wall, plastic sheet, sandwich panel, composite panel, steel plate, aluminum plate, copper plate, stone and other industries; it is suitable for various workpieces with relatively flat and dense surfaces and relatively regular shapes
Factory
Shandong Unid Intelligent Technology Co., Ltd. is a leading manufacturer of hydraulic lifting equipment and Aerial Work lift Platform with more than 10-years-experience, including Intelligent glazing robot, suction cups vacuum glass lifters, sandwich panels vacuum lifters, metal sheet vacuum lifters and other single-circuit and dual-circuit vacuum lifters.
We always keep "To make Construction easier,safer and more efficient" in Mind, Serving for customers mainly from Europe, North America, South America and so on.
Certificate: CE, ROHS, SGS, ISO etc.
Welcome to visit us and negotiate business.
Dealers and Wholesalers are especially welcomed and we will give special discounts.
After Sales Service
1. Spare parts provided freely within quality warranty.2. Providing user's manual.3. Liftetime techinique support.4. 24 hours telephone and Internet service
FAQ

Questions	Answers
1. Are you a factory or trading company?	Yes, we're factory with over 10 years exporting experience.
2. What's the MOQ?	1 UNIT
3. Do you offer OEM&ODM service?	Yes, like lifting capacity, lifting height, size of platform, painting color, logo, manual etc.
4. What's the quality warranty?	12 months. Spare parts provided freely within quality warranty.
5. How can I get the after-sales service?	We offer Videos, Pictures, User Manual, Technical guidance and 24 hours online service
6. What's your QA&QC policy?	100% Test before shipping.
