New Automatic Durable Two Spindles Axis High Quality Gang Tool CNC Lathe

Product Description

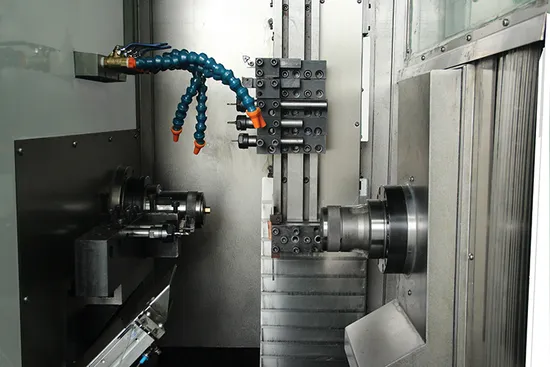

DAS DS-5-DI/II Dual-Spindle Dual-Channel Tool-traveling CNC Torno Lathe Metal Machine Product Description
1.The machine tool adopts the row knife type,the tool change precision is stable,the structure economy is high,and the power head can be expanded to realize the turning and milling composite processing.
2.The double spindle adopts servo electric spindle,which has high speed accuracy and low noise.
3.Using Taiwan's precison linear guides and ball screw pairs,the ball screws are pre-stretched to increase rigidity and reduce the impact of machine tool cold and heat on machining accuracy
4.Guide rail lubrication uses volumetric distributor with oil injection,and regularly supplies oil for screw and guide rails the waste of lubrication oil and avoid environmental pollution.

5.The vertical arrangement of the pallet and the large-capcaity chip discharge port provide a more ideal solution for the collection of iron filings.The chip conveyor can select side chip removal or rear chip workshop layout.
6.Two sets of high-pressure and large-flow water-coling system are adopted.The knife seat is powerfully sprayed with water and has chip breaking function to prevent the spindle fro m receiving scraps.

Name	DS-5-DI	DS-5-DII
The style of installation tool	Gang type	Gang type
Adjacent tool change time (s)	0.2	0.2
Tool change style	Random	Random
Square knife knife holder (mm)	20×20	20×20
Round hole knife holder (mm)	φ20	φ20
With chuck size	5 Inch	5 Inch
Spindle speed (r/min)	0-4500	0-4500
Spindle/Sub-spindle bore (mm)	φ46/φ32	φ46/φ46
Tool holder Center height (mm)	65	65
The maximum diameter of rotation (mm)	φ200	φ400
Max.turning diameter(mm)	φ129	φ179
Spindle/Sub-spindle motor power (KW)	5.5/3.7	5.5/5.5
Minimum system Resolution	0.001	0.001
X1/Z1 axis travel(mm)	670/220	800/200
X2/Z2 axis travel(mm)	600/270	800/200
X/Z axis fast moving speed (m/min)	26(Factory setting)	26(Factory setting)
X/Z axis Repetitive positioning accuracy (mm)	0.005/0.005	0.005/0.005
Taper (mm)	≤0.003/100mm	≤0.003/100mm
Card position size (mm)	≤0.003	≤0.003
X1/X2 servo-motor (KW)	1.3/1.3	0.85/0.85
Z1/Z2 servo-motor (KW)	0.85/0.85	0.85/0.85
Hydraulic station (KW)	0.75	0.75
Water tank motor power (KW)	150W	150W
Cooling water tank capacity (L)	60	60
Power (KW)	17	19
Weight (KG)	4500	4500
Size (L*W*H mm)	2700*1700*2100	3000*1600*2000

1. Machine tool control system uses Taiwan SYNTEC system. Other Brand including GSK,Fanuc,Siemens are OK!
2. Machine body is cast in one piece. The lathe bed is flat bed and the inclined placement of lathe carriage.
3.Taiwan's high-precision spindle, comprising Japan NSK precise bearings; three-jaw hydraulic chuck or other elastic clamp can be directly fitted on the main shaft flange.
4.The drive part of machine tool uses HIWIN/PMI high precision P3 class ball bearing screw and high speed linear slide rail.
Good Feedback
Foshan Shunde Guoqiang Daosheng Industrial Co., Ltd. is located in Chencun, the important machinery town in Shunde District,Foshan. Sticking to the human-centering management, we are in possession of a group of highly competent technical personnel, a market oriented experienced sales team. In the gesture of sincere cooperation, we strive to establish a promise keeping and quality .
Our major products include CNC series gang tool type lathes , turret lathes, take heart-type lathes and milling-type lathes, featuring space saving, low cost and diversified arrangement etc.
They can also meet the demand for precise processing of different products. The products find widespread application in the manufacture of cars, motorcycles and accessories thereof,electronic industry, optical instruments, clocks and watches as well as special motors etc.
We have precise lathe equipment, complete quality guarantee system, prompt goods supply as well as perfect after-sales service,which ensure us the first consideration when you purchase high-precision machine tools.

---
