Woodworking Automatic Feeding Log Carriage Saw Machine Wood Cutting Circular Sawmill

Product Description

Product Parameters
Circular Sawmill With Carriage
Designed to saw mahogany sanders,teak, rosewood in African and South American.
The blade is 1.2 meters diameter,made of Japanese hard alloy,easy to polish
The power can be generated from electricity or electric start diesel engine.
The machine is easy to operate and high efficiency.

Model	3000	4000	5000
Max. Sawing Wood Diameter	500mm	500mm	500mm
Motor Power	30KW	30 KW	30 KW
Walking(forward, back)	Manual	Manual	Manual
Carriage Stake Quantity	3	4	4
Carriage Length	3Meters	4Meters	5Meters
Max Sawing Wood Length	4Meters	5Meters	6Meters
Rail Length	9 Meters	11Meters	11Meters
Machine Weight	1500kg	1800kg	2000kg

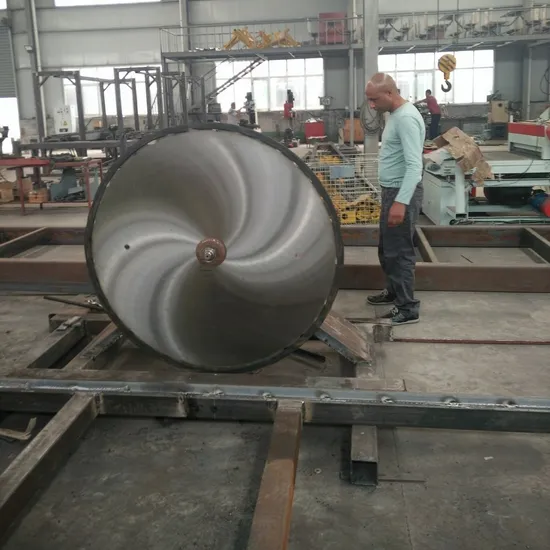

1.2 M Diameter 36 Teeth Circular Blade
Option 1:Electric forward and backward. Option 2:35 HP Electric start diesel engine.

Related Machines
Industrial Table Saw

Model	700	900
TCT Circular Saw Blade Diameter	Φ700mm	Φ900mm
Max Sawing Wood Thickness	260MM	360MM
Working table size	1500×800mm	1500×800mm
Spindle power	1500r/min	1500r/min
Motor power	11KW/380V	18.5KW/380V
Weight	480KG	550KG

Wood Sliding Table Sawmill

Model	1500	2000	3000
Max Sawing Wood Diameter	400mm	400mm	400mm
Max Sawing Wood Length	1500mm	2000mm	3000mm
Motor Power	7.5KW*2	7.5KW*2	7.5KW*2

4 Blades Wood Sliding Table Sawmill

Model	480-4000
Max Sawing Wood Diameter	480mm
Motor Power	22KW*2
Saw Blade Diameter	600MM*2,450MM*2
Carriage Length	4000MM
Max Sawing Wood Length	5000mm
Wood Clamping Quantity	4
Weight	1900KG
