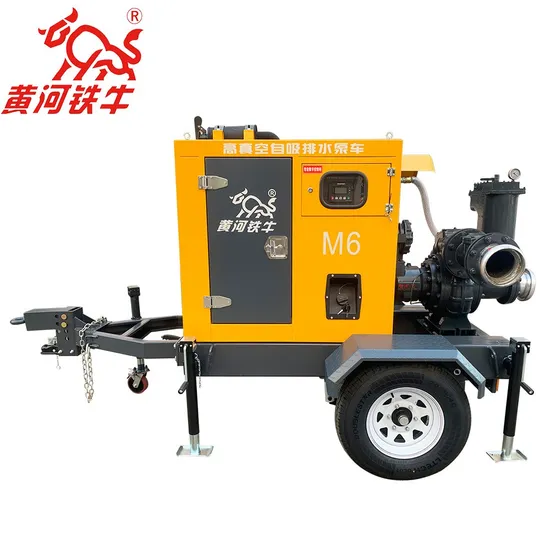

6-Inch Trailer Type High Head Diesel Centrifugal Pump, High Vacuum Self Suction Drainage Pump, Flood Prevention Water Pump

Product Description

Product Description The M6 series diesel engine water pump is one of our company's popular products. Although the diameter of the pump is small, it has the characteristics of high suction head and high flow rate. And the operation is relatively simple, with excellent sealing performance. This series of pumps can solve problems such as urban waterlogging and agricultural drainage. Product Parameters

high vacuum assisted self-priming diesel driven water pump
Model	M6	Flow rate	500m3/h
Suction/Discharge diameter	6inch / 6inch	Max.Head	40m
Solids handling	70mm
Engine models
Engine brand	CUMMINS	continuous power	40kw
Engine model	4BT3.9-P55	Rated speed	1800rpm
Water Pump models
Pump brand	Huanghe Tieniu	Pump model	m6
Running speed	1800rpm	Max. Suction lift	9m
Controller	intelligent LCD panel	Run-time of standard fuel tank	10 hours
Size(LxWxH)(mm)	1850x1000x1150	Trailer type dimensions(mm)(optional)	3550x1600x1980
N.W. of standardbase frame (kg)	700kgs	N.W. of trailer type (kg)(optional)	1300kgs

Detailed Photos Installation Instructions How to operation this machine?
1. Connect suction pipe.
2. Connect hose.
3. Open the power switch to connect battery power.
4. Press start button(the green button on controller panel)
5. Waiting and the machine will work automatically.
Please note that:.
1. The sealing O-ring should be smeared by butter before used, or it will be broken soon.
2. Make sure every joint is sealed well before start the engine.
3. Make sure the fuel, oil and coolant is enough in the engine.
4. Check if the power circuit is connected well.
Product usage scenarios Company Profile Shanghai Huanghe pump manufacture CO., Ltd is a factory established in 2012, we have focused on designing and manufacturing water pumps, "San jiao zhou" is our first brand from the beginning, in 2021, we have another brand "Huanghe Iron Cow", which means our new pursuit for quality and innovation.
From the day we established, we always keep improving management level and efficiency. Today we have management certificate such as ISO9001-2015,ISO14001:2015, ISO45001:2018, we always try to manufacture pumps product exactly according to customer's working site condition and need, these products are popular among customers from various industries such as chemical, oil, environment, metallurgy, water supply and drainage, electricity, ocean engineering etc.
Exhibition photos
Our Advantages 1. We focus on reseaching diesel water pump for years and is one the first factoies in this industry. our experience will help us serve our customers better.
2. Our factoctory has effective cost control measures so we can supply water pump products at really competitive price.
3. We have our own technical team who design pump and machine, so we can offer more choice for our customers.
4. Our high-vacuum system makes operation the diesel pump machine much easier, both users and distributors will benefit from our diesel water pump machines a lot.
FAQ Are you manufacturer or trading company?
Our company is an experienced manufacturer located in Shanghai, we focus on diesel engine pump manufacturing and researching.
Can you manufacture pump according to customer's requirement?
Yes, we offer OEM or ODM manufacturing service and will put customer's logo on the machine.
What is the delivery term you will accept?
We accept C&F, FOB, CIF terms.
What is your payment term?
Our payment term is 30% as deposit and 70% before delivery.

---
