1. product description:
The parking sensor is mainly used to solve a blind area of the large vehicle and the intelligent parking sensor defense system. Passing rear of vehicle the parking sensor, the position and distance of the rear obstacle are fed back on the LED display. So that the driver can judge the condition of the car more directly to achieve safe driving. The equipment has the advantages of quick reaction, high sensitivity and strong environmental adaptability.

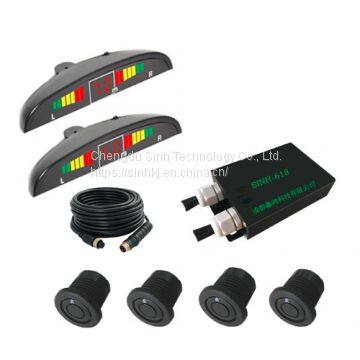

2. Supplied Accessories :
| Accessory | Quantity | Product model | Remark |
| Radar host | 1 | SINH-618 |
|
| Sensor | 4 | 30T |
|
| Link | 2 |
| According to the car model matching |
| LED display | 1 |
| LED |
| Product manual | 1 | SINH parking sensor monitoring system |
|
| certificate | 1 |
|
|
3. technical parameters:
voltage:DC12-24V;
Power consumption:<5W;
Detection range: 0.4~7.0m;
Display resolution:0.1m;
Working temp.:-40°C ~+80°C;
Detection Angle: according to customer demand;
4. Product Features:
* Wide voltage: The system is powered by intelligent DC-DC converter, you can use the voltage within the 10v-24v range;
* Alarm way: The buzzer alarm.
* Fast installation design: the digital ultrasonic sensor using a cable connection, and the use of waterproof connector ;
* Intelligent quality inspection system: automatic detection system itself;
* Rapid detection: Double optimized high-speed communication protocol to improve detection response speed
* High precision detection: a unique algorithm to ensure the detection accuracy of 0.1 meters distance, near blind zone of 0.4 meters, the maximum detection distance of 7 meters.
The main machine adopts waterproof design(IP67). Wide voltage input is also supported(DC12-DC24V).
Sensor:
A. Digital design: Waterproof, earthquake resistant,anti-interference, Suitable for most high and low temperature environments;
B. The probe housing is made of high quality rubber cover, with high quality silicone seal, which makes the probe waterproof, anti-interference and anti-seismic effect better.
>>
