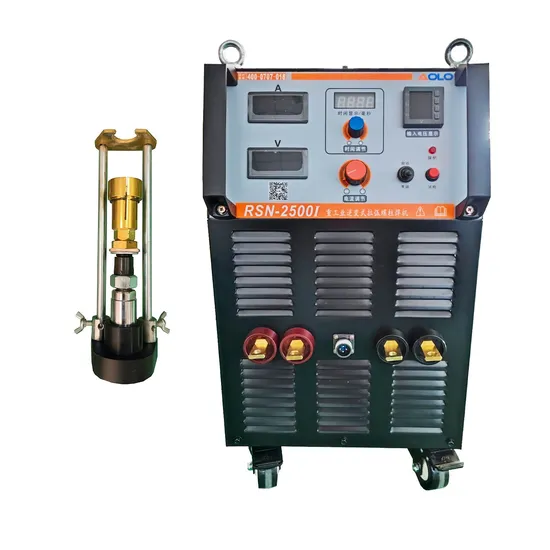

Inverter Arc Stud Welding Machine Steel Structure Drawn Arc Stud Welder

Product Description

Product Description Characteristics and uses
1. Advanced IGBT inverter technology
2. The volume and weight of the welder are significantly reduced
3. The loss of copper and iron is significantly reduced, the efficiency of the whole welding machine is obviously improved, and the energy saving effect is remarkable
4. The switching frequency is outside the audio frequency, which almost eliminates noise pollution
5. The advanced control scheme significantly improves the performance of the welding machine and meets the welding process requirements to a greater extent. The machine can be widely used in the welding of various studs
6. The machine has the characteristics of easy arc initiation, small spatter, stable current and good forming
7. The arc ignition circuit is designed internally, which obviously improves the arc ignition performance of welding
8. High no-load output, which significantly improves the performance of the welding machine during lengthening line welding, can can realize long-distance welding

Product Parameters Technical Parameters

Model	RSN-1600	RSN-2000	RSN-2500	RSN-3150
Input voltage (V)	AC380V±10%	AC380V±10%	AC380V±10%	AC380V±10%
No-load voltage (V)	85	85	85	85
Welding torch voltage (V)	80-110	80-110	80-110	80-110
Rated output power (KVA)	55	60	80	100
Rated welding current (A)	1600	2000	2500	2500
Welding current range (A)	300-1600	300-2000	300-2500	300-2500
Welding range (mm)	6-19	6-19	6-25	6-32
Welding time (S)	1-5	1-5	1-5	1-5
Welding speed (pcs/min)	20 (Φ6-Φ10), 16 (Φ12-Φ16 ), 12 (Φ19-Φ22), 10 (Φ25 )
Output cable	Φ6-Φ12 using 25square meters, more than Φ13 using 95square meters
Parameter display	No-load voltage, Welding time, Welding current
Protection class	IP21	IP21	IP21	IP21
Dimensions (mm)	700*370*680	700*370*680	700*370*680	700*370*680
Weight (kg)	70	75	80	90

Certifications
Packaging & Shipping
Company Profile
FAQ 1. Are you a factory or trading company?
We are the manufacturer of welding equipment, plasma cutting machine and stud welding machine
2. Where is your factory located?
Our company is in Innovation and Entrepreneurship Park, Taizhou City, Jiangsu Province. Welcome to visit our factory!
☆10 minutes to Taizhou bus station by car
☆20 minutes to Yangzhou and Taizhou Airport by car
☆2.5 hours to Shanghai
3. What certificates do you have?
We have gained the certificate of CCC, CE, ISO, ROHS
4. Can you do OEM?
Yes, we accept OEM
5. What's your MOQ?
1 set is available. Different products has different minimum order quantity.
6. What's your delivery time?
The delivery time needs to be decided according to the specific quantity. It usually takes about 30 days after confirming details of the order.
7. What's your warranty?
Our each machine should be 100% tested before delivery and has one year warranty

---
