Automatic Metal Panel Bender

Product Description

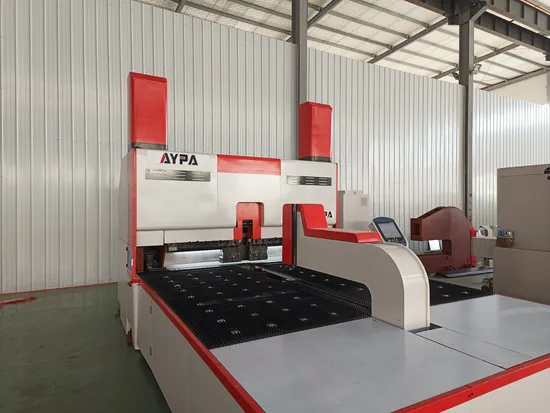

Automatic Metal Panel Bender
Product Description
AYPA is proud to introduce the intelligent flexible panel bender.
√ Tabular programming is visual and handled easily.
√ Users can monitor the machine operation and workpiece output by cellphone APP any time.
√ AYPA automatic bender can bend complex shapes without molding and needn't replace tools.
√ Fully closed loop controlling system supports 25 axes linkage.
√ AYPA bender can match with robot arm in automatic flow line.
√ It's widely used to produce cabinet, fire door, kitchenware, refrigeration, and aluminum walls.
Bending Workpiece Display

Detailed Photos
* Q235 steel plate
* High temperature annealing process
* 42CrMo forging material
* Customized knives available

Product Parameters

Model		DES-1200	DES-1400	DES-2000	DES-2500	DES-3000
Max. Continuous Bending Speed		≤0.2sec/each bending	≤0.2sec/each bending	≤0.3sec/each bending	≤0.5sec/each bending	≤0.6sec/each bending
Max. Bending Length		1000mm	1400mm	2000mm	2500mm	3200mm
Max. Bending Height		170/210mm	170/300 mm	170/300 mm	170/300 mm	170/210 mm
Max. Bending Thickness	stainless steel	1.0mm	1.2mm	1.2mm	1.2mm	1.2mm
	Carbon steel	1.2mm	2.0mm	2.0mm	2.0mm	2.0mm
	aluminum	1.5mm	2.5mm	2.5mm	2.5mm	2.5mm
Min. Bending Thickness		0.15mm	0.15mm	0.15mm	0.15mm	0.15mm
Bending Degree		0-360°	0-360°	0-360°	0-360°	0-360°
Accuracy of Bending Angle		±1°	±1°	±1°	±1°	±1°
Accuracy of Feeding Length		±0.1mm	±0.1mm	±0.1mm	±0.1mm	±0.1mm
Feeding Method		Sucked/ Pressed	Sucked/ Pressed	Pressed	Pressed	Pressed
Feeding Table		Brush+ Universal ball	Brush+ Universal ball	Brush+ Universal ball	Brush+ Universal ball	Brush+ Universal ball
Min. One-step Forming Size on All Four Sides		200*280mm	200*280mm	200*280mm	200*280mm	200*280mm
Min. One-step Forming Size on Single Side		150mm	150mm	150mm	150mm	150mm
Noise Level		≈40db	≈40db	≈40db	≈40db	≈40db
Main Power		380V	380V	380V	380V	380V
Outline Dimension (mm)		3100* 1500* 2800	4500* 2000* 2800	5100* 2700* 2800	5700* 3100* 2800	7000* 3800* 2800
Approx. Weight (Tons)		10	11	18	19	21

Packaging & Shipping

Company Profile

FAQ
1. How about the delivery time?
Generally it's 15-30 days based on the model.
2. How is the warranty time?
1 year after installation.
Lifetime free technical support.
3. How to choose the suitable machine?
Please advise us the material/ thickness/ dimension of metal sheet, and product photos.

---
