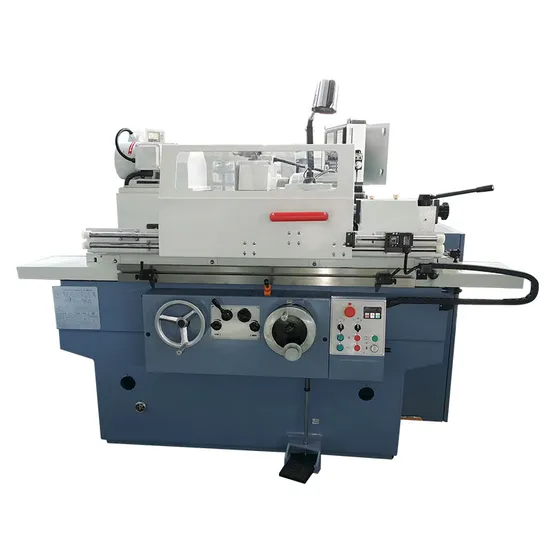

M1420H/FX500 Cylindrical Grinding Machine for Internal and External Grinding

Product Description

Main features:
M1420H/F universal cylindrical grinding machine is the latest up to upgrade products .For grinding the workpiece of inner and outer cylindrical and tapered ,the most suitable for single piece and small batch production use.
Headstock by a variable frequency motor drive ,continuously variable transmission.
Longitudinal movement of the machine by hydraulic stepless transmission ,can also hand-wheel drive ;wheel lateral movement with hydraulic quick retreat and manual feed function.

Description	unit	M1420H/F×500
External grinding diameters	mm	Φ8 ~200
Inrer grinding diameters	mm	Φ13~100
Center height	mm	135
Workhead spindle speeds	r/min	50Hz:25~380 stepless
of table	mm	650
Hydraulic traverse sdeeds	m/min	0.1~4
Max.workpiece weight	kg	50
Grinding length External/Internal	mm	500/125
Swivel range of worktable	.	5~+9°
Max peripheral speed of grinding wheel	m/s	38
Externalwheef size	mm	MaxΦ400×50×Φ203 MinΦ280×50×Φ203
Internal wheel spindle rotating-speed	r/min	16000
Workhead and tailstock center	morse	NO.4
Machine motor power	kw	5.625
Overall dimensions(L×W×H)	mm	2500×1600×1500
Machine weight	kg	2500

---
