HDPE Pipe Water and Gas Supply Pipe Extrusion Machine

Product Description

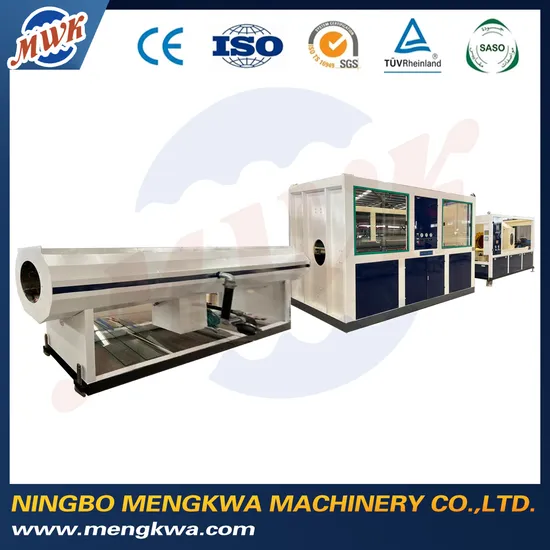

HDPE Water & Gas supply Pipe Extrusion Line
Special note
HDPE series plastic pipe production line is mainly used in the area of agricultural water supply single extruder, system, architectural water supply system, pavement of cables, etc.
Details
This machine group consists mainly of vacuum calibrating tank, haul-off unit, cutting unit, stacker, etc. Single screw extruder and haul-off unit have applied imported AC inverter, both vacuum pump and driving motor have applied excellent products. The haul-off unit includes two-claw type, three-claw type, four-claw type ,eight-claw type, ten-claw type, twelve-claw type ,etc. Scraps fee cutting, saw cutting or planetary cutting can be applied, the property of machine group is reliable, the production efficiency is high. With special device, it can produce inner wall spiral pipe, inner wall hollow pipe , and core layer foamed pipe etc. It also can produce PP, PE ,ABS, PPR, PEX, silicon core pipe and other material pipe. The planetary cutting machine is fully automatic computer digital control. It has such advantages of simple operation, reliable property, etc.
MACHINE TYPE

Model	Pipe diameter (mm)	Extruder	Capacity (kg/h)	Qty. of claws	Pulling speed (m/min)	Capacity(kg/h)	Total power (kw)
PE63	Φ 16 - Φ 63	SJ65/33	100-150	2	12	100-150	100
PE110	Φ 32 - Φ 110	SJ65/33	150-200	2	6	150-200	130
PE250	Φ 50 - Φ 160	SJ65/33	200-250	2	4.5	200-250	145
PE315	Φ 75 - Φ 250	SJ75/33	250-350	3	3.5	250-350	210
PE450	Φ 90 - Φ 315	SJ75/33	250-350	4	2.5	250-350	260
PE500	Φ 160 - Φ 450	SJ90/33	450-550	4	2	450-550	380
PE630	Φ 315 - Φ 630	SJ120/33	700-900	6	1.2	700-900	530
PE800	Φ 450 - Φ 800	SJ120/33 SJ150/33	1000-1300	8	0.6	1000-1300	600
PE-1000	Φ 630 - Φ 1000	SJ150/33	1000-1300	8	0.4	1000-1300	650
PE-1200	Φ 710 - Φ 1200	SJ150/33	1000-1500	8	0.3	1000-1500	960
PE-1600	Φ 1000 - Φ1600	SJ150/33	1000-1700	12	0.2	1000-1700	1300

01 WHY CHOOSE MENGKWA?
1) Mechanical and electric parts of machines for our machines are from famous brands with reliable and stable quality .
2) Machine structures and applicant parts are heavy duty type .
3) Technologies of machines are developing to be much more energy saving and higher production output .
4) Engineers for installation and training are both available in China and abroad .
5) Our after service is available in 24hours by team group to every customer .
6) Our machines reach to 54 countries all over the world since 1996 .
02 TERMS OF PAYMENT
30% deposit and 70% balance before shipment after machine testing approved by customer .
03 PACKING AND LOADING
Safe packing for container loading OR heavy duty iron frame fixing OR wood cases packages .
04 AFTER-SALE SERVICE
1) 24 hours technical support by email, call, video.
2) Warranty for one year after 12 months of shipment.
3) Installation and commissioning engineer will provide the tech long machine, and machine operation of the buyer's personnel on-site training, troubleshooting and machine maintenance. The factory offers free installation training for a week the company engineers, beyond a week, the salaries borne by the customer engineer the factory.

---
