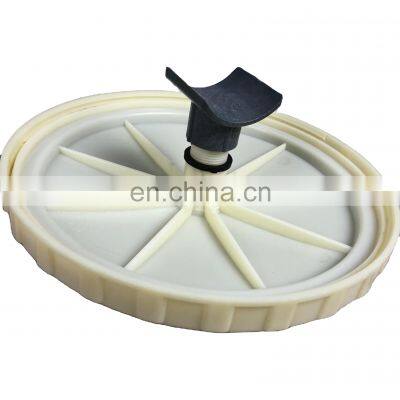

Product Description New High Oxygen Micro Aeration Membrane EPDM Air Fine Bubble Disc Diffuser Fine bubble diffuser, which is used to transfer air and with that oxygen into sewage or industrial wastewater. Oxygen is required by microorganisms in the water to break down the pollutants. Fine bubble disc diffuser series combines effective design, low installation costs, reliability and high performance in intermittent and continuous aeration processes.Special designed the slits cut opining, patterns and spacing between the slits for high oxygen transfer and longtime operation. Usual size: 215mm, 260mm, 300mmMaterial: ABSTechnical Parameters:Aerator Specifications 215mm260mm300mmWorking ventilation 1.5-3 m/h.pc2-5 m/h.pc2-8m3/h.pcService area 0.3-0.65m/h.pc0.4-0.8m/h.pc0.5-1.0m/h.pcOxygen utilization rate 22-40%31-59%35-59%Oxygenation capacity 0.13-0.4kgO2/h0.21-0.4kgO2/h0.2-0.4kgO2/hSubmerged depth 4-8m4-8m4-8mAir supply (water depth 4m)2m/h3m/h4.25m/h Advantage:1.Anti-blocking, anti-intrusion2.High tear resistance3.Uniform gas distribution, energy saving and high efficiency4.Anti-aging, anti-corrosion5.Low resistance lossEPDM Fine Bubble Disc Diffuser • Ideal for air-on/air-off applications such as SBRs, aerobic digesters, and anoxic swing zones, as well as continuous operation• Over 22 million diffusers installed in municipal and industrial applications worldwide• Higher sustained efficiencies verified through 3rd party testing• Advanced membrane perforation technique creates extremely fine, uniform bubble pattern for optimal oxygen transfer• Low maintenance and long service life of more than 5 years• Using imported raw material Air bulle diffuser parts Lanyu offers a range of advanced wastewater and water solutions to help operators around the world achieve their required water effluent while delivering optimal performance, reliable operations and substantial energy savings no matter what industry or application. Below are some recommended industries and applications.• Biological treatment• Active Sludge treatment• Aquaculture treatment Related Products We can also supply tube bubble diffuser as following:
>>
