Cuttermaster Tool and Cutter Grinder Mr-6025

Product Description

Product Description

Product Description Sharpening scope: In hole, outer annulus, column, trench, taper, end mill, disc cutter, lathe tool, square
shape and diamond cutting tool, gear cutting tool and so on.
The working table uses dovetail guide rail or high precision straight line roiling guide rails,good back and
forth movement, high stability, steady bed platform, dexterous operation.
Motor can rotate 360° in the horizontal plane, the grinding wheel can be clockwise and anticlockwise
rapidly. When grind different kinds of material's cutter, you can turn the grinding wheel, which can add the safety and reduce the time of replacing and dressing the grinding wheel, adding controllability of cutter grinding.
Standard accessory can grind lathe tool, end milling cutter, face and side cutters, hobbing cutters, circular
paper cutters,etc.
Choosing 50E accessory can grind MO-type 4# coning spiral milling cutter, ball cutter, R-shape lathe tool,etc.
Choosing 50K accessory can grind MO-type 4# coning or diameter 3-32mm drill bit, screw tap, etc.
Choosing 50D accessory can grind MO-type 4# coning spiral milling cutter, etc.
Choosing 50J thimble, 50B toolbox and so on.
SPECIFICATION

Model	MR-6025
Max. Grinding diameter	250mm
About worktable diameter	350mm
About workable traveling schedule	150mm
Elevating Distance of Wheel head	150mm
Rotating Angle of Wheel head	360°
Grinding head speed	5000RPM
Horse Power and Voltage of Motor	3/4HP,380V
Power	1HP
Inner bore of the grinding work piece	10-50mm
lateral feeding distance	190mm
Workable area	130×550mm
Elevating Distance of Wheel head	160mm
Height of the head holder	135mm
Taper hole of the main spindle of the head holder	mo-type 4#
Grinding wheel	150×16×32mm
Dimension	730×710×715mm
Net weight / gross weight:	212kg/222kg
Optional Equipment	★50E grind spiral milling cutter ball end mill,R type lathe tool,graver and other taper milling cutter. ★50K can grind drill bit ,screw tap,side mill,round bar and so on. ★50D can grind end mill ,side mill and so on. ★50B tablebox ★50J thimble

Detailed Photos

Details:

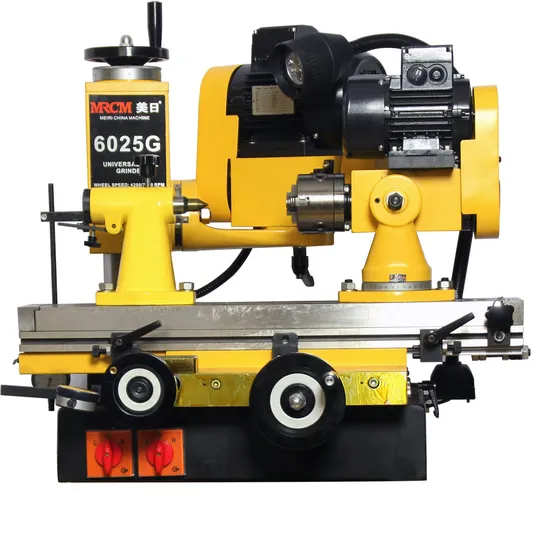

MR-6025
UNIVERSAL TOOL GRINDER
It is specially designed for sharpening various diameters,shapes,angles of carving knives,round knives,
straight shank cutter,end mill,drill,lathe tool,engraving cutter and so on;
it is with good precision,competive price,on skill request.
THE ACCESSORY:
50K Drill bit:screw tap grinder 50D end-milling cutter grinder 50e spiral mill-ball cutter grinder
50H tool accessories(standard) 50J Thimble 50B toolbox
Packaging & Shipping

EXPORTING PACKAGE,SAFE AND STABLE
Company Profile

Company Information
MRCM is a manufacturer specialized in developing and producing small special-purpose tool grinders, precision machinery
tools. It is a high-tech enterprise which includes research and development; design; production; sale; and after-sale service. In the past many years, we've been committed to research, develop and produce the grinding tools. We've been
started from the portable drill bit sharpener and continuously developed to the current four-axis and six-axis CNC tool grinding machine. The CNC machine with different functions to meet the market requirements, effectively
improve the working life of tools and reduce production costs.
Main products include: CNC tool grinder, drill bit sharpener, end mill sharpener, screw tap sharpener, lathe tool grinder, saw blade sharpener, universal cutter grinder, universal tool grinder, chamfer, tapping machine, vise, sucker, zero positioning, and so on.
Engaged in international marketing, participated in international exhibitions, such as EMO Hannover, cooperated with the domestic and foreign companies. We've passed the CE, ISO 9001 certification, have been applied for over 70 national patents, sold product to 60 countries and regions, 80% of exporting products are sold to developed countries such as Japan, Europe countries and so on.
FAQ

FAQ
1.What is your advance?
A:(1)We have ourselves factory. We accept the order if you want to customize products or design the product.
(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have 52 patents products.
(5)80% exporting products have been sold to Europe,America and Japan, high quality.
2. What's the minimum order quantity?
A: One set is acceptable
3. How about the payment Term?
A: We accept T/T,Western Union,LC
4. What's your port?
A: Ningbo/Shanghai.
5. Can we use our own shipping agent?
A: Yes,you can. we had cooperated with many forwarders.If you need,We can recommend some forwarders to you and you
can compare the price and the service.
6. Can we use our own LOGO or design for sticker?
A: Yes,you can contact with the salesman. And sent us more details about the LOGO or sticker.
7. How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
8. Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for cheaper price but do not pay the cost of freight.

---
