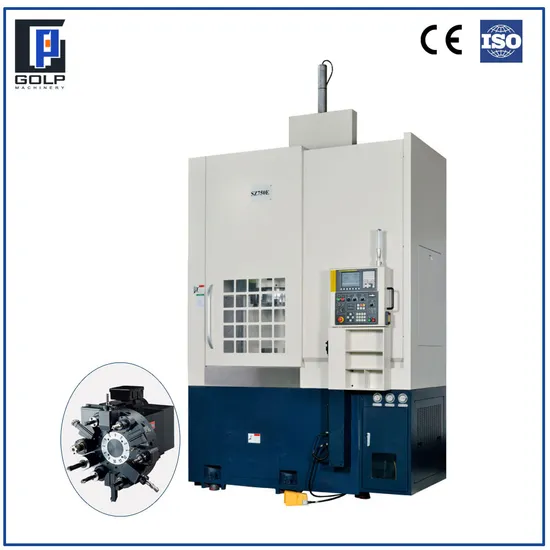

High Precision Max. Cutting Dia 1100mm Vertical CNC Lathe Machine for Bearing Ring Processing

Product Description

lt is suitable for large, thin, heavy and irregularty shaped machined objects,and it is easy to machine,and to load and unload the workpieces;
Δ Maximum speed of spindle: 1500rpm
Δ Spindle motor power(continuous/30min): 18.5/22kW
Δ Hydraulic collet: 18 inches
Δ Number of tool positions:10
Δ Maximum cutting diameter: 850mm
Δ X/Z-axis fast feed: 20/20m/min
Δ Machine tool dimensions:4350×2350×4450(L×W×H)
Δ Machine tool weight:16000kg

Standard specifica		Unit	SZ750E
Machine capability
Three-jaw hydraulic collet		Inch	18"(457mm)
Maximum rotation diameter		mm	ø1350
Maximum cutting diameter		mm	ø1100
Amount of movement
Left and right(X-axis)stroke		mm	460
Up and down (Z-axis)stroke		mm	815
Spindle
Inner diameter of spindle bearing		mm	200
Spindle nose		mm	A2-11
Spindle speed	Low gear	min-¹	20~340
	High gear		340~1500
Turret
Turret type			Horizontal
*Number of tool⋆		Pcs	10
Tool size		mm	32,ø50
FANUC Motor
Spindle motor		kw	18.5/22
X-axis servo motor		kw	4
Z-axis servo motor		kw	4
Y-axis servo motor		kw
Hydraulic motor		kw	2.2
Motor for cutting fluid pump		kw	1kw×3
Electromechanical system
*Power demand⋆		KVA	50
Machine dimennsions(approximate value)
Floor area(L×W*)		mm	4350×2350
Machine height		mm	44,500
Machine weight		KG	16,000

Standard configuration
FANUC-OI TF control system	Iron chip conveyor	Electrical cabinet heat exchanger	Self-lubrication system
Automatic balance compensation system	All cover metal plate	Cutting fluid system	Work light
Hydraulic collet	Tricolor warning light	2 end face tool holders of type E turret	Service kit
Soft jaw	Transformer	2 boring tool holders of type E turret	Operation manual
Backward iron chip conveyor	Programmable two-stage pressure control(collet pressure)	Hydraulic system	Cutting fluid tank and bottom bed flushing system

Optional Configuration
Siemens control system	Auto-door	Cutting fluid level detector	VDI tool holder(model with E+C turret)
Hard jaw	Electrical cabinet air conditioner	Cutting fluid freezer	Double-sided turning function
Oil-water separator	Heidenhain optical scale	Paper tape filter	Hydraulic oil heat exchanger
Air spray gun	Jig and fixture design	Oil mist collector	Spindle motor power escalation

Type E turret (horizontal turret)
The rotating disc type turret is designed with the nearby tool selection function, saving non-cutting time. The turret adopts a high-rigidity and high -strength toothed clutchwith high positioning accuracy and repeatability, showing the best machining capability. Related characteristics enable more significant efficiency in the automobile parts processing industry, such as brake discs, brake drums,wheel hubs,knuckles, etc.
Type B turret (comb type turret)
The comb type turret is simple in structure and not easily damaged, with strong rigidity, low investment cost and no tool changing time, so it is a good choice for simple machined objects.
V.D.I turret(horizontal power turret)
The high-rigidity V.D.I turret enables the machine tool to perform multifunctional machining such as turning, driling, tapping, etc., which can reduce the loading and unloading time of workpieces and cost of fixtures, and reduce the logistics space.
Type A turret (vertical turret)
The turret adopts a toothed clutch for positioning, with positioning accuracy of 5" and repeated accuracy of 3": The circular arc tooth type can withstand high cutting force, the turret is driven by a high -torque hydraulic motor to rotate quickly, and the speed is controlled by a cam, so that the tool changing process is smooth. Controlled by an intelligent computer, it achieves bidirectional nearby tool selection to shorten the tool changing time.lt is suitable for machining workpieces with large diameter and deep hole, such as motor frames, truck brake drums, valves, etc.
CUSTOMER CASE: brake disc, motor base, wheel drum, encoder, turbine hosing, knuckle, pressure plate,flying wheels, motor end cover...
WUXI GOLP CNC MACHINERY CO.,Ltd is located in Wuxi--the core location of the Changjiang Delta which is the most dynamic economy area in China. We are a new brand company specializing in the CNC machine tool industry. The company is mainly engaged in Die-casting machine, CNC Punching machines, Powder compacting machine and other new intelligent machine and related supporting products. The company adheres to the business philosophy --Professional quality, Credibility first, Customer first, and is committed to the development goal of becoming an important member of the global market in the field of intelligent machines.

Q: What are your normal lead times?
A: Normally, 30 to 60 days
Q: What kind of package do you offer?
A: Standard wooden case packing
Q: Do you have certification of your machine?
A: CE certificate
Q: How about the warranty service?
A: 24 months
Q: How about the installation and commissioning?
A: we will enclose the production specification with the machine, and we could provide the video online to you, and our engineers are available to debug machinery overseas.
Q: How to select the suitable machine?
A: Pls tell us the machine you need, Includes drawings, specifications and other requirements.
Q: How to do it if we meet the issue during the operation?
A: We provide completely after sales service, and our engineers are available to service machinery overseas.
Q: If we want to learn how to operate the machine, Can you provide it?
A: Yes, we have special service team which will offer you professional guidance.

---
