Plastic Bucket, Drum, Water Tank, Pallet Barrel Making Blowing Molding/Moulding Production Line

Product Description

PXB5000L

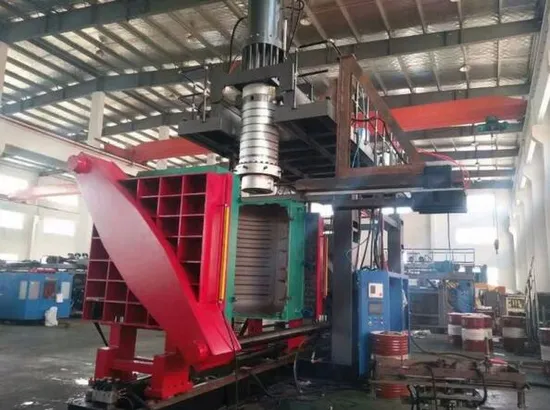

Blow Molding Machine
- Fixed open-closing and accumulator die head adopts oblique arm double drawbar synchronous clamping mechanism.
- Large space for mold, clamping stable, durable mode platen, mold clamping by oil cylinder pressure directly.
- Perfect Usage for 5000L Container, Large Barrel, Outdoor Toys, etc.
- High efficiency mixing screw mechanism for HMWHDPE on extruder unit.
Configuration List

PLC	MITSUBISHI	Japan
Touch Screen	WEINVIEW	Taiwan
D.C Driver	Eurotherm	U.K
Power Supply	MEAN WELL	Taiwan
Relay	OMRON	Japan
Hydraulic Valves	YUKEN	Japan
Hydraulic Pump	YUKEN	Japan
Contactors	LS(LG)	Korea
Solid relay	FOTEK	Japan
Breaker	LS(LG)	Korea
Temperature Control Module	MITSUBISHI	Japan
Oil Sealing	DZ	Taiwan
Oil Tube	LIEBAO	Taiwan
Transducer	GEFRAN	Italy
Proximity Switch	KINGTON	Taiwan
D.C Motor	XIMA	China
Air Valve	FESTO	Germany
Parison Controller	Moog	Japan
Servo Valve	Moog	Japan

Parameters:

Machine model		PXB5000L
Material		PE,PP,ABS...
Max container capacity	L	5000
Output(dry cycle)	pc/hr	120
Machine dimension(L×W×H)	M	11.0×6.5×8.5
Machine weight	T	85
Clamping Unit
Clamping force	kn	1500-2000
Mold platen size(W×H)	mm	2200×2400
Platen moving stroke	mm	1300-3600
Platen moving stroke	mm	2300
Max Mold Size (WxH)	mm	2000×2600
Mold thickness	mm	1350-1550
Power
Servo oil pump motor power	KW	45
Servo pump displacement	L/MIN	250
Blow pressure	MPA	1
Air consumption	M3/MIN	6
Cooling water pressure	mpa	0.5
Water consumption	L/min	100
Average energy consumption	KW	85-100
Extruder unit
Screw diameter	mm	120×2
Screw L/D ratio	L/D	30
HDPE Melting capacit for HDPE	kg/hr	600-700
Number of heating zone	zone	6
Screw heating power	kw	70
Screw fan power	KW	0.6
Extruder motor power	kw	90×2
Die head
Number of heating zone for single die head	zone	6
Heating power for single die head	kw	39
Max die-pin diameter	mm	550
Accumulator capacity	L	200
(HDPE) Accumulator weight(HDPE)	KG	150

Delivery Time:
- No later than 90 days after receipt of the deposit
Training:
- We provide training service for two or three operating men for free (but the cost for trainer's board and lodging is not included).
Installation:
- The supplier will send one specialist to test run the machine until it is running in normal state.
Guarantee:
- Our guarantee is valid for a period of 12 months. If the malfunction caused of the machine's self quality, we will troubleshoot it for free.
Auxiliary Equipments:
- Auxiliary equipments for production line are available and optional, please kindly ask for quotation.

---
