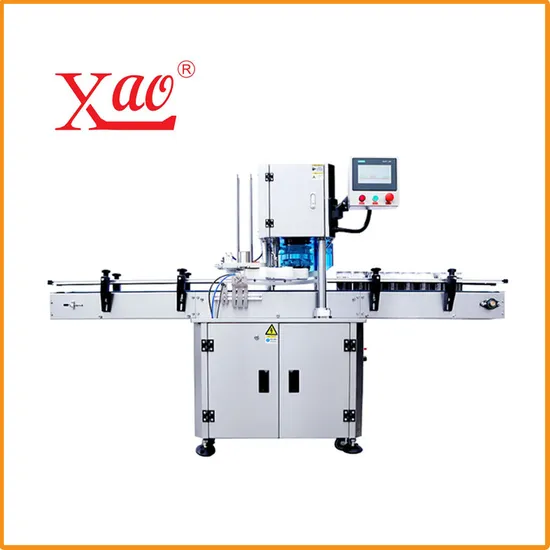

Automatic Tin Can Sealing Machine for Biscuit Cans

Product Description

Whether it is canned fruit, canned meat, or various beverage cans (such as carbonated beverage cans, juice beverage cans, etc.), they all need to be sealed using an automatic can sealing machine.
The can body is conveyed to the working area of can sealing machine at a certain spacing and direction through a conveyor belt, and the can lid is inductively dropped in an orderly manner. The speed of the conveyor belt and the spacing of the can body can be accurately to ensure that each can body can accurately cooperate with the can lid for can sealing. When the can body and can lid are positioned, sealing rollers start working. The first roller bends the edge of the can lid with appropriate pressure and initially fits the edge, and then the second roller further curls and presses it. The whole process is driven by the motor through a precise transmission system. In this process, the machine will control the roller pressure, rotation speed and can sealing time according to the preset parameters to ensure the consistency of the sealing quality.
The automatic can seamer has a precise positioning and alignment mechanism. It uses devices such as photoelectric sensors to detect the position of can body and lid. When they reach the sealing position, t sensor will send a signal to enable the machine's mechanical arm or fixture to accurately position and align them. If there is a deviation in the position, the machine will automatically adjust to ensure that can lid can accurately cover can body.
The automatic can seamer can ensure the high consistency of sealing quality through advanced control systems and precision mechanical components. During the can sealing process, pressure, roll sealing size and other parameters of each can can be accurately controlled,which helps to reduce the defective rate of cansand improve the overall quality. Technical Parameters

Applicable Cans	Food Can, Beverage Can, Chemical cans, Empty or Filled Cans
Model	XY110
Can Diameter	D30-110mm
Can Height	H25-220mm
Capacity	20-55 cans/min
Sheet Thickness	T0.16-0.3mm
No. of Sealing Heads	01
No . of Working Rollers	04, 2 first sealing wheels, 2 second sealing wheels
Power	1.7 kW
Dimension	L2430 x W850 x H1650mm

Features

High Automation Degree	Automatic feeding, Automatic positioning and canning, Automatic detection and error correction.
High Production Efficiency	Sealing speed is very impressive, it can work uninterruptedly for a long time.
Stable Can Sealing Quality	Precise parameter control: This auto seamer can accurately control various parameters in the sealing process, such as can sealing pressure and the speed of seaming rollers to achieve high-quality sealing effect.
High-quality Key Components	Siemens PLC and touch screen, NSK bearings, Delta/Siemens Inverter, Sick/Autonix photoelectric sensor, Innovance servo motor, Symtech/AirTAC pneumatic components.
Wide Range of Applications	It is suitable for making cans of various sizes and shapes, and the mold replacement is fast and convenient.Easy to integrate with other equipment.
Safe and Reliable Operation Design	It is equipped with completed safety protection devices, The operation interface is friendly, easy to understand and master.

---
