Mini Farm Tractor Plowing Machine Agricultural Land Hand Plowing Machine

Product Description

mini farm tractor plowing machine agricultural land hand plowing machine
Basic info
Condition:New
Type:Farm Cultivator
Power Type:Diesel
Machine Type:Cultivator
Warranty:1 Year
Use:Farm/ garden
Place of Origin:Shandong, China
Brand Name:Customized
Weight:150 KG
Key Selling Points:Multifunctional
Marketing Type:Ordinary Product
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Warranty of core components:6 Months
Core Components:Gear
Applicable Industries:Farms, Home Use
Showroom Location:None
Product name:tractor plowing machine agricultural land hand plowing machine
Working width:270-350cm
Application:Ariculture/Farm/Garden
working width:810mm-1750mm
Working sped:>5km/h
Flip form:540-720hp
Shaft type:Hydraulic semi turnover type
After-sales Service Provided:Online support
Supply Ability:3000 Sets per Month
Packaging Details:wooden case
Port:Qingdao
Product Information

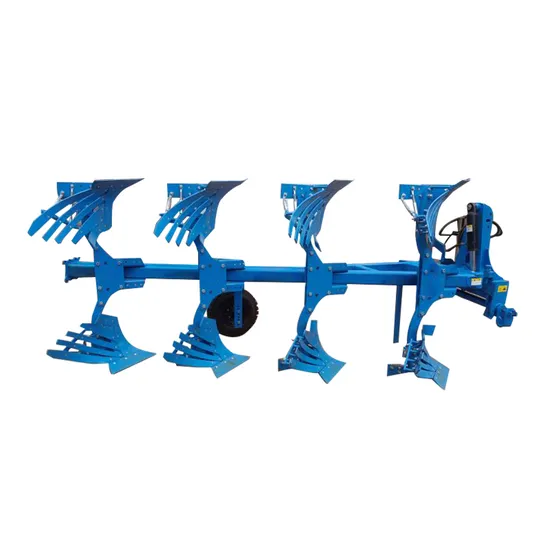

Furrow plough is a four-wheel tractor-mounted plow. It is more suitable to the farm with many straws and the stems high and the stems returned to the field, it is not easy to be stopped up and pulled, the soil. With the turning up the soil rolled, the frictional force is lower, the depleted efficacy is lower, so its efficacy is higher and the depleted oil is less than the plough share.

Model	LS-327	LS-435	LS-527	LS-535
Structural Type	Suspension type	Suspension type	Suspension type	Suspension type
Size	2140x1145x1380mm	4100x2350x1750 mm	3300x1850x1380mm	4960x2500x1750mm
Rated power of matching tractor	36.5-58.8 kw	99.3-132.3kw	73.5-110.3kw	117.6-154.35kw
Flip form	Hydraulic semi turnover type	Hydraulic semi turnover type	Hydraulic semi turnover type	Hydraulic semi turnover type
Plow type	Ordinary	Ordinary	Ordinary	Ordinary
Number of plows	3+3	4+4	5+5	5+5
Plow width	270mm	350mm	270mm	350mm
Ploughshare type	Trapezoid	Universal	Universal	Universal
Moldboard type	Integral grid type	Combined grid type	Combined grid type	Combined grid type
Total working width	810mm	1400mm	1350mm	1750mm
Longitudinal distance of plough	560mm	880mm	560mm	880mm
Plough wheel	Depth wheel	Depth limited transport integrated wheel	Depth wheel	Depth limited transport integrated wheel
Number of plough wheel	1	1	1	1
Adjusting range of depth wheel	0-110mm	0-300mm	0-110mm	0-300mm
Cylinder model	ø50-370	ø80-485	ø70-425	ø80-485
Number of cylinder	1	1	1	1
Working sped	>5km/h	>5km/h	>5km/h	>5km/h

Application
Plowing Suitable for sandy loam, loam, clay soil and paddy field
• The upper layer of soil and organic compounds on the surface are reversed deeply under the earth by the plough.
• Plowing green manures, trashes and organic matter is effectively mixed with the soil and decays rapidly into humus.
• The soils are well crushed and after plowing, the land surface is plain.

---
