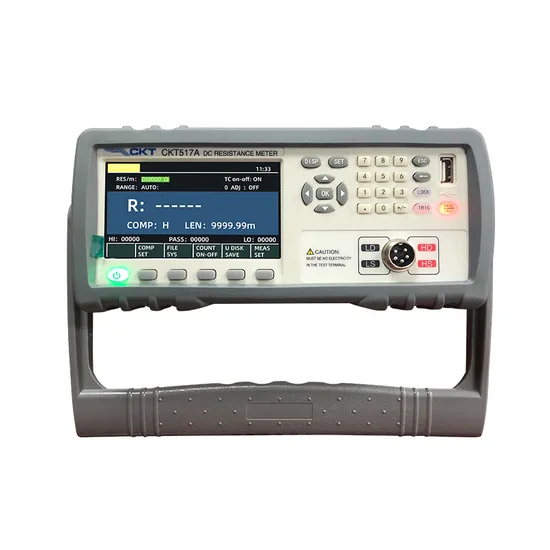

Ckt517A DC Resistance Meter Milli Ohm Tester for Low Resistance Measurement

Product Description

Product Description https://ckt2017.en.made-in-china.com/product-list-1.html
Brief Introduction The basic accuracy of CKT517/A/B DC resistance tester is 0.05%, and the measurable range is 1μΩ-2MΩ (only CKT517). The maximum test speed can reach 20 times per second. The instrument has a contact detection function. The instrument can set the upper and lower limits. It has 232, HANDLER, U disk and other interfaces. It is suitable for automatic production lines with various signal interfaces and is suitable for production lines. Cost-effective resistance tester. The basic accuracy of CKT515/A DC resistance tester is 0.01%, and the measurable range is 0.1μΩ~110MΩ (only CKT515). The maximum test speed can reach 100 times/sec. The instrument can set the upper and lower limits. It has RS232, HANDLER, U disk and other interfaces. It is suitable for automatic production lines with various signal interfaces and is suitable for production lines. Cost-effective resistance tester.

SPECIFICATIONS
		CKT517			CKT517A	CKT517B
Parameter		DC resistance
DISPLAY
Display		4.3-inch and IPS LCD screen, resolution of 480 x 272
Reading Digits		4 1/2 digits
RESISTANCE MEASUREMENT
Measurement Range		1μΩ~2MΩ	1μΩ~200 kΩ			10μΩ~20 kΩ
Basic Accuracy		0.05% (Refer to user's manual for more details)
Maximum Test Current		1A				100mA
MEASUREMENT FUNCTION
Range		Automatic and manual
Resistance Test Speed		FAST:20ms,SLOW:40 ms
Temperature Test Time		100ms	None
Test Terminal Configuration		4-terminal
Statistics Function		OVER/BEEP/OK products quantity statistics
Setting Data Storage		5 groups
TEMPERATURE MEASUREMENT
Parameter		PT1000: accuracy 0.1ºC		None
Display Range		-10ºC - 99.9ºC		None
COMPARATOR
Signal Output		HI/PASS1/PASS2/PASS3/LO/FAIL
Beep		OK/NG/OFF
Limit Set Mode		3 bins;ABS or Percentage high/low limit +nominal value
OHER PARAMETERS
Trigger		Internal, External, Manual
Interface		USB HOST / RS232 / HANDLER / RS485 (optional)
Dimension & Weight		LxWxH:361 mm x 107 mm x 264 mm; Net weight: approx.3.6KG
Other Function		Cable length test function (Optional)
GENERAL FEATURES
Power Supply	Voltage: 110V/220V; Frequency: 47.5~52.5Hz
ORDERING INFORMATION
Accessories	Kelvin test clip; AC power cord, Temperature probe (Only CKT517)
Optional Accessories	RS232 communication cable, RS485 communication interface, data acquisition software, multimeter pen test clip, SMD Kelvin test cable

Detailed Photos
Packaging & Shipping https://ckt2017.en.made-in-china.com/company-Changzhou-Chuangkai-Electronic-Co-Ltd-.html
Company Profile https://ckt2017.en.made-in-china.com/contact-info.html
Chuangkai Electronic Co., Ltd is leading company specialized in producing, developing & selling various types of measuring instruments and testing equipment, such as temperature data logger, LCR meter, DC resistance tester (micro ohm meter), digital power meter, power supply, transformer tester, battery tester, programmable DC electronic load, charger, temperature controller, tachometer, high voltage signal-amplifier, power amplifier, etc.
FAQ:
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales teams that can respond to you within 24 hours to resolve technical issues. We provide one-to-one after-sales service.
Q: Can you customize it?
A: Yes, we accept customization according to customer's specific requirements.
Q. How long is your lead time? If I want to customize instruments, how long will it take?
A. When order quantity is 1-10 units, we have ready stock goods, we can ship out within 3-5 working days after receipt of deposit; products required new production of common materials, usually the lead time is about 10-15 days; products requiring new production of special and rare materials, usually the lead time is about 20-30 days.
Q. What payment method do you accept?
A. Our company accept payment method of T/T (bank transfer), Western Union, PayPal and so on.
Q. What package do you use for your products? What shipping method do you use?
A.1. Our company use standard exporting carton for packing. 2. We ship via express courier (door to door service), by air, and by sea according to customers' requirements.
For more questions, please feel free to send inquiries to us.

---
