Food Grade PLA Coating Disposable Single Coffee Tea Milk Ice Cream Paper Cup Making Machine

Product Description

Product Description

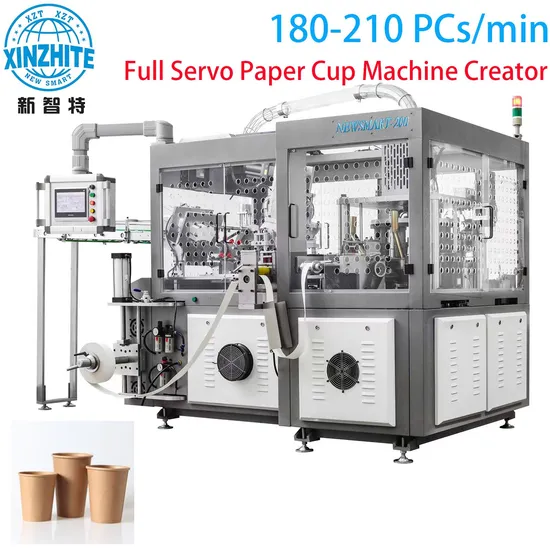

Newsmart-200 paper cup forming machine features entirely servo-driven technology throughout the entire machine. Servo drives work independently to control each station with remarkable accuracy and work together to coordinate the synchronized motion. It is an upgraded version of XZT-150 and provides a higher speed, low maintenance, and affordable capital cost compared with other horizontal machines. It produces 4 oz. to 16 oz. paper cups at a speed of up to 210 cups per minute. Newsmart-200 incorporates technologically advanced performance features to improve uptime and increase production.



Product Parameters

Technical Specification
Model	NEWSMART-200
Cup size	4-16oz(Max bottom 60mm, top 95mm, height 150mm)
Material	170-380GSM single or double PE / PLA coated paper
Production capacity	180-200pcs/min
Power Supply	3phase 380V 50Hz, 38KW (running consumption is 13-15KW)
Air Supply(air compressor prepared by buyer)	0.6Mpa (running consumption 0.5Nm3/min)
Dimension	2460x1620x1820mm
Weight	3000kgs

Sample Show

Certifications
Packaging & Shipping

Company Profile
Wenzhou New Smart Machinery Co., Ltd was founded in 2020. We are a technical innovation enterprise that focuses on paper container forming machinery R&D and production. Our engineers have more than 20 years of experience in the paper container forming machinery manufacturing field. Company founder Mr. Jin Haixiao, also our senior engineer, has rich experience in mechanical design concepts to machine commissioning.
Newsmart's first generation XZT-150 high-speed paper cup machine has several technical barriers which break traditional machinery technology. We dare to use advanced technology instead of traditional technology and keep innovating for the revolution of industry technology.
Our Service

Pre-Sales Service	After-Sales Service
1. Inquiry and consulting support, 2. Sample testing support, 3. View our Factory.	1. Training on how to install the machine, 2. Training on how to use and maintain the machine, 3. Engineers available to service machinery overseas. 4. Online service is always available.

FAQ
Pre-sales issues _____
Q1- Is your company a factory or a trading company?
A1- We are a factory with more than 20 years of technical experience.
Q2- Where is your factory? How can I visit your company?
A2- Our factory is located in Wenzhou, Zhejiang province, China. It takes about 50 minutes from shanghai by plane(5 hours by train). All clients are warmly welcome to visit us.
Q3- What is the suitable material for your machines? What size of cup/bowl you can make?
A3- PE, double-PE Laminated cup paper, composite material, aluminum foil paper, etc. are suitable for our machines. We can make paper cups/bowls from 4oz-57oz.
Q4-What kind of machines do you produce?
A4. Full servo paper Cup making machine, full servo paper bowl-making machine, fully automatic intelligent cup packaging machine.
Q5- What certificates of machine do you have
A5- CE, and more than 10 pieces of Patent of the machine.
Q6- What information should I let you know if I want to get a quotation?
A6- Quantity, detailed size (top diameter, bottom diameter, and height), paper thickness&material.

Problems in sale _____ Q1- What about the payment term?
A1- 30%T/T in advance, the rest paid before shipment.

---
