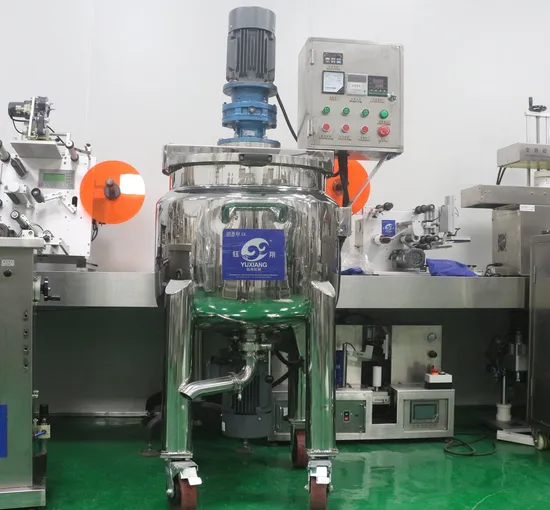

| 1. Main Pot (Three layer) | ||||
| No | Item | Description | Remark | |
| 1.1 | Volume | Full volume: 60-600L, Working capacity:50-500L | Loading coefficient 0.8 | |
| 1.2 | Heating | Jacket is Electric heating, power: 6KW*2 | ||
| 1.3 | Structure | 3 layers, Caldron, heating with keep warming system, unilateral cover on the pot, butterfly type sealing head at the bottom, with scraping the wall mixing, with pure water inlet/AES feeding port/alkali liquor inlet; | ||
| 1.5 | Material | Internal layer: SUS316L, thickness: 5mm | ||
| Middle layer: SUS304, thickness: 5mm | Quality certificate | |||
| External layer:SUS304, thickness:3 mm | Insulation media: aluminum silicate | |||
| 1.6 | Strut way | Stainless steel hang ear, support point distance is 600mm from the feeding hole | 4 pcs | |
| 1.7 | Discharging way: | Bottom ball valve | DN65, hygiene level | |
| 1.8 | Polishing level | Pot is internal and external sanitation polishing, fully meet the requirements of GMP hygiene standards; | GMP hygiene standards | |
| 2. Scraping the wall mixing system | ||||
| No | Item | Description | Remark | |
| 2.1 | Up mixing | Power is 1.5-4KW, Rotary Speed is 0-63r/min. | Siemens Motor, equip with reducer, frequency control of motor speed | |
| 2.2 | Inverter | Taiwan | ||
| 2.3 | Mixing way | Frame type wall scraper mixing, with one fixed oar | SUS316L | |
| 2.4 | Sealing way | Three way skeleton oil seal + bearing | Bearing is from NSK | |
| 2.6 | Scraper blade | Around 6pcs, Ptfe material | high temperature resistant, wear-resisting | |
| 2.7 | Polish Level | Mirror polish ≥300 mesh | GMP standards | |
| NSK bearing made in Japan Adopting Germany Bergman mechanical seal | ||||
| 3. Bottom homogenizer | ||||
| No | Item | Description | Remark | |
| 3.1 | Homogenizer motor | Vertical Installation, Power is 2.2-5.5KW, rotary speed is 3000 rpm/min | Siemens | |
| 3.2 | Sealing way | mechanical seal | Germany Bergman | |
| 3.3 | Homogeneous head processing | Rotor and stator adopts wire-electrode cutting and finish machining | SUS316L | |
| 3.4 | Testing Method | Dynamic balance treatment | ||
| 4. Electric control system | ||||
| No | Item | Description | Remark | |
| 4.1 | shell material | SUS304,thickness: 2mm | Stainless steel sand panel | |
| 4.2 | Dimension | W800mmXH1700mmXL300mm | Based on actual | |
| 4.3 | instrument | Current meter, thermometer, time digital display table | ||
| 4.4 | Button | Each function switch control button, the power supply display lights, urgent stop and so on various control relay | ||
| 4.5 | Appliance Components | Include each control relay | ||
| Electric button Digital display type time relay Temperature control meter Voltmeter | ||||
| 5. Other affiliated fittings | ||||
| No | Item | Description | Remark | |
| 5.1 | Funnel device | Diameter:φ400, material: SUS316L; | Fast makeup | |
| 5.2 | temperature probe | bottom plug-in type, hygiene level, PT100,50-200ºC | M12 Screw thread connection | |
