US$2,900.00-4,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Carrying Capacity
Weight Level
Standard
National Standards
Capacity Secondary Reel
45m
Electric Motor
Ybk2-132m-4 Y2-132m-4
Transport Package
Wooden Case or Carton Case
Specification
1210*565*490
Origin
Jining City, Shandong Province, China
Production Capacity
1000 Sets Per Month
Product Description
Introduction of 2JPB-7.5 Explosion-Proof Mine Winch Two Drum Scraper WinchsMining Scraper Winch is mainly used for coal mine & other underground mine or open-pit ore handling and filling operations. It is mainly used for horizontal plane transport and slope dumping with small slope angle, but it cannot be used as lifting equipment. The parallel arrangement of electric tweezers is common to the PB series bucket loading machine.zmwm10 Application of 2JPB-7.5 Explosion-Proof Mine Winch Two Drum Scraper WinchsThe main components of the electric tweezers are a speed reducer, a main reel, a secondary reel, an operating device, a steel wire for guide and an electric motor. These components are housed inside and outside the housing. The housing is a component with good rigidity, which serves as a protection, support and full load. Parameter of 2JPB-7.5 Explosion-Proof Mine Winch Two Drum Scraper Winchs
Item |
unit | Scraper Winch Model |
| 2JPB-7.5 | 2JPB-15 | 2JPB-22 | 2JPB-30 | 2JPB-55 |
| 2JP-7.5 | 2JP-15 | 2JP-22 | 2JP-30 | 2JP-55 |
The average tension of the main wire rope is not less than | N | 8000 | 14000 | 20000 | 275000 | 44000 |
| Average speed | Main wire rope | ±5%m/s | 1.0 | 1.10 | 1.20 | 1.20 | 1.20 |
Secondary wire rope | 1.0 | 1.50 | 1.50 | 1.60 | 1.80 |
Wire rope diameter | Main wire rope | mm | 9.3 | 12.5 | 14.0 | 15.5 | 18.5 |
| Secondary wire rope | 9.3 | 11.0 | 11.0 | 14.0 | 16.0 |
| reel | diameter | mm | 205 | 225 | 280 | 280 | 350 |
| Rim diameter | mm | 350 | 435 | 510 | 510 | 625 |
| width | mm | 80 | 125 | 160 | 160 | 180 |
Capacity |
Main reel | m | 45 | 80 | 80 | 80 | 100 |
Secondary reel | m | 45 | 100 | 100 | 110 | 130 |
| electric motor |
model | | YBK2-132M-4 | YBK2-160L-4 | YBK2-180L-4 | YBK2-200L-4 | YBK2-250M-4 |
| | Y2-132M-4 | Y2-160L-4 | Y2-180L-4 | Y2-200L-4 | Y2-250M-4 |
| power | KW | 7.5 | 15 | 22 | 30 | 55 |
| Rotating speed | r/min | 1440 | 1460 | 1470 | 1470 | 1470 |
Dimensions | length | mm | 1210 | 1525 | 1600 | 1650 | 2070 |
| Width | mm | 565 | 660 | 730 | 820 | 1010 |
height | mm | 490 | 620 | 640 | 700 | 890 |
Total weight (excluding skips and pulleys) | kg | 390 | 660 | 980 | 1155 | 2125 |

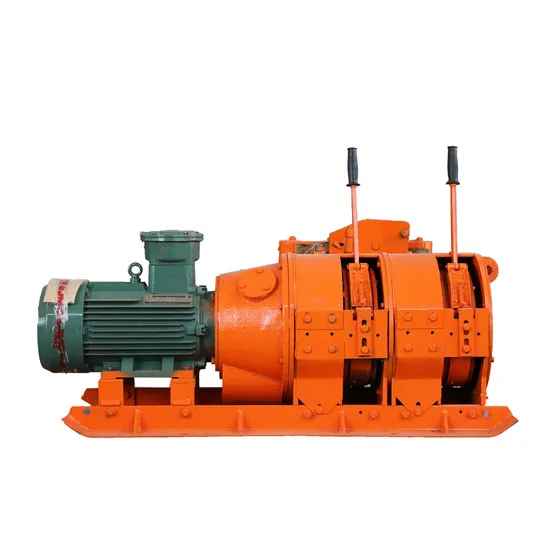

Photos of 2JPB-7.5 Explosion-Proof Mine Winch Two Drum Scraper Winchs
>>
