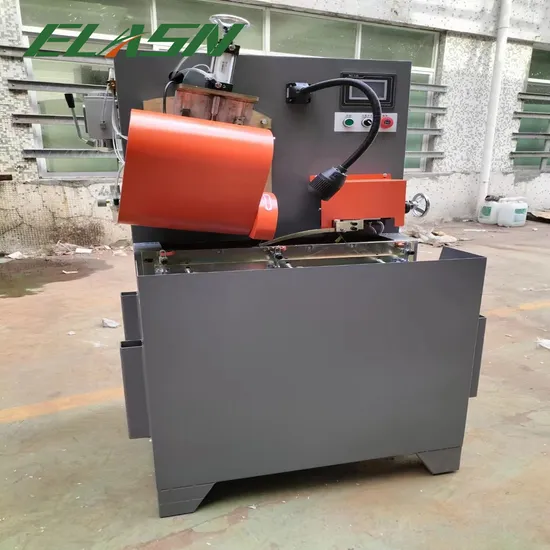

Ela-Mc125L Band Saw Sharpening Machine

Product Description

Product Description Bandsaw Mill Blade Sharpener is a kind of equipment specially used for grinding the teeth of band saw blades. It is widely used in machinery manufacturing, wood processing, and metal cutting industries.
During the use of band saw blades, the teeth will gradually wear out, resulting in a decrease in cutting effect. The bandsaw mill blade sharpener can effectively repair these teeth and restore them to a state close to that of new saw blades.
The bandsaw mill blade sharpener is suitable for various types of saw blades such as alloy band saw blades, bimetallic band saw blades, and frame saw blades. It can effectively repair worn teeth, restore their cutting performance, and extend the service life of saw blades, thereby reducing the replacement frequency and lowering production costs.
Product Parameters Model ELA-MC125L

Saw blade pitch	10-45mm
Saw blade width	25-125mm
Saw blade teeth deep	5-15mm
Grinding wheel size	φ175*φ32*φ10mm
Grinding wheel drive motor	0.55KW
Feed motor	2*200W
Dimensions	600*900*1400mm
Total weight	206kg

Product Features
Wood Processing Industry: The bandsaw mill blade sharpener plays an important role in wood processing. It can efficiently and accurately grind saw blades to meet the needs of furniture manufacturing and building materials processing. It is suitable for various types of saw blades such as alloy band saw blades, bimetallic band saw blades, and frame saw blades.
Machinery Manufacturing: In the machinery manufacturing industry, bandsaw mill blade sharpeners are used to repair and maintain saw blades to ensure the performance and accuracy of cutting tools.
Metal Cutting: The bandsaw mill blade sharpener is also suitable for the metal cutting industry. It can effectively grind alloy band saw blades and bimetal band saw blades, extend the service life of the saw blades, and reduce production costs.

Working Principle of Bandsaw Mill Blade Sharpener

The basic working principle of the bandsaw mill blade sharpener is to grind the teeth of the saw blade through a grinding wheel to restore the sharpness of the saw blade teeth.
The grinding wheel rotates at high speed to generate grinding force. When the teeth of the saw blade contact the grinding wheel, the abrasive grains on the surface of the grinding wheel will gradually grind away the metal material of the teeth, thereby changing the shape and size of the teeth. During the grinding process, the relative position and movement trajectory of the grinding wheel and the saw blade teeth need to be precisely controlled to ensure that each tooth can be evenly ground and meet the expected tooth shape and sharpness requirements.
The automatic bandsaw mill blade sharpener can accurately set and adjust the grinding speed, depth, and other parameters. For example, according to the material, wear degree, and required grinding effect of the saw blade, it can adjust the rotation speed of the grinding wheel and the contact depth between the saw blade teeth and the grinding wheel during each grinding to ensure the grinding quality.
Automatic gear shifting function:
Through program control, the sharpener can automatically move each tooth of the saw blade to the grinding position in turn, realizing continuous and automatic gear grinding operation, which improves work efficiency and grinding accuracy.
