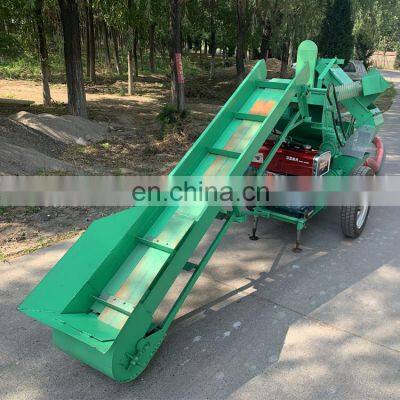

Factory Direct Sale Maize/Corn Thresher
Brief Introduction
This series of industri corn sheller is widely applied for livestock breeding,farms and household use.There are four different models of the industri corn sheller.Biggest industri corn sheller( 5TY-80D) mainly used for shelling the maize from cobs under the condition of no damaging the cobs,with features of reasonable structure ,steady performance and easy operation and so on.
Machine Parameters
Model
| 5TY-80D
|
Power
| 15HP diesel engine or 7.5 KW motor
|
Capacity
| 6t/h (Corn seeds )
|
Threshing rate
| ≥ 99.5%
|
Loss rate
| ≤ 2.0%
|
Breakage rate
| ≤ 1.5%
|
Impurity rate
| ≤ 1.0%
|
Weight
| 350kg
|
Size
| 3860*1360*2480 mm
|
Machine Advantages
1. Saving the labour and time through conveyor belt.
2. The elevator can transport corn kernels directly into the container,saving much time.
3.Breakage rate Below 1.5%.good performance of impurity separation,separate out the impurities thoroughly.
4. You can choose either a diesel engine or motor.
5.The maize thresher machine is equipped with wheels and brackets for easy fixing and movement.
6. The slanting designing of feeding entrance lower the feeding height ,convenient feeding,automatic feeding hopper can save energy to place the corn.
Working Principle
1.Corn threshing machine is composed of feeding hopper, upper and lower housing and internal threshing and rolling device,air separation system composed of elevator, fan and chaff absorber, vibrating cleaning screen, frame, transmission system and so on.
2.Feed the corn into conveyor, corn cob goes into the threshing chamber . After threshing and separating ,corn seeds and a small amount of debris go into the stirring dragons from the concave board .Mixed grain materials, go into the cleaning sieve through such as the dragon and elevator, and impurities smaller than grain drop off from the screen hole. grain and other major impurities move along with the screen to outlet .
3.When it arrive in the absorbers, small impurities are discharged out by absorber.Grains go into the grain collecting device from cleaning sieve.The corn cob after threshing is discharged from the straw outlet.
