Lifting Equipment/Electric Wire Rope Hoist

Product Description

Lifting Equipment/Electric Wire Rope Hoist

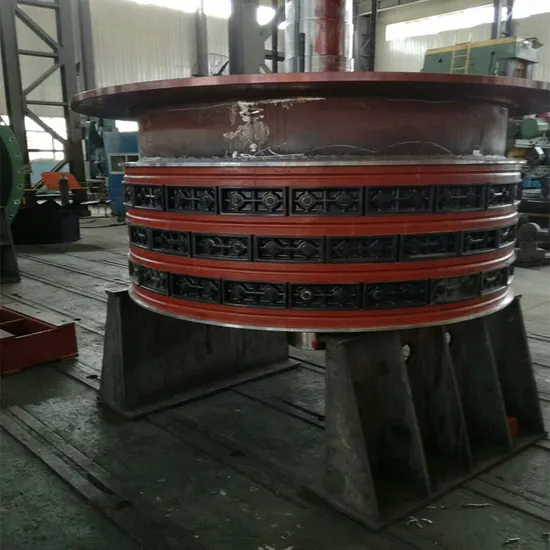

Mine hoist can be divided into two kinds; one kind is JKE series single rope mining hoist and the other is Multi-rope friction hoist.
This series mine hoist including 2m-5m single tubular and double tubular types, and can be used for mining hoist, personnel lifting and material and equipment descending from vertical shafts or inclined shafts of coal, metal and nonmetal ores.
JK mine hoist is mainly used in inclined roadways and wells of coal mines, metal mines and non-metal mines to hoist or lower personnel and materials.

JK series single-rope mine hoist:
Application:
The hoist equipment is used to lift mineral, equipment or mining workers in the underground type mine, such as coal mine, iron mine, copper, gold, and other metal and non metal mine with vertical shaft or inclined shaft.

Working Principle:
The motor transmits power to the drum which wrapped by wire rope through the reducer to lift and lower the container. The speed is adjusted by electric drive. the braking of disc brake via hydraulic and electric system.
Main technical parameters:

Model	Drum				Tension PF	Tension Differe	Rope Diameter	Lift height (m)				Max Speed	Reduce speed ratio	Motor Speed
	Number	Dia	Width					1-layer	2-layer	3-layer
		m			KN		mm	m				m/s		r/min
JK-2×1.5/20	1	2.0		1.5	62		24	305	650		1025	5.2	20.0	1000
JK-2×1.5/31.5													31.5
JK-2×1.8/20				1.80				375	797		1246		20.0
JK-2×1.8/31.5													31.5
JK-2.5×2/20		2.5		2.00	83		28	448	945		1475	5.0	20.0	750
JK-2.5×2/31.5													31.5
JK-2.5×2.3/20				2.30				525	1100		1712		20.0
JK-2.5×2.3/31.5													31.5
JK-3×2.2/20		3.0		2.20	135		36	458	966		1513	6.0	20.0
2JK-2×1/11.2	2	2.0		1.00	62	40	24	182	406		652	7.0	11.2
2JK-2×1/20													20.0
2JK-2×1/31.5													31.5
2JK-2×1.25/11.2				1.25				242	528		838		11.2
2JK-2×1.25/20													20.0
2JK-2×1.25/31.5													31.5
2JK-2.5×1.2/11.2		2.5		1.20	83	65	28				843	8.8	11.2
2JK-2.5×1.2/20													20.0
2JK-2.5×1.2/31.5													31.5
2JK-2.5×1.5/11.2		2.5		1.50	83	65	28	319	685		1080	8.8	11.2
2JK-2.5×1.5/20													20.0
2JK-2.5×1.5/31.5													31.5
2JK-3×1.5/11.2		3.0			135	90	36	289	624		994	10.5	11.2
2JK-3×1.5/20													20.0
2JK-3×1.5/31.5													31.5
2JK-3×1.8/11.2				1.80				362	770		1217		11.2
2JK-3×1.8/20													20.0
2JK-3×1.8/31.5													31.5
2JK-3.5×1.7/11.2		3.5		1.70	170	115	40	349	746		-	12.6	11.2
2JK-3.5×1.7/20													20.0
2JK-3.5×2.1/11.2				2.10				450	950		-		11.2
2JK-3.5×2.1/11.2													20.0
2JK-4×2.1/10		4.0			245	160	48	421	891		-	12.6	10.0	600
2JK-4×2.1/11.2													11.2
2JK-4×2.1/20													20.0
2JK-5×2.3/10		5.0		2.30	280	180	52	533	-		-	12	10.0	500
2JK-5×2.3/11.2

About us
CITICHL Heavy Industries CO., LTD. The former was CITIC Heavy Machinery Co., Ltd. It was used be subsidiary of CITIC heavy machinery co., ltd. The company was founded in 1981 and finished joint stock reform in 2005, which is located in Luoyang city, capital city of nine dynasties in ancient times.
With a garden-like industrial park and modern standard plant covering 80000 square meters, CITICHL possesses advanced equipments, technologies and detecting methods. After more than 30 years development, the company has developed into a collectivized one with product designing, manufacture, installation and technical services.
The products comprise all the equipments used in mining, ore dressing, hoisting, coal preparation, crushing and grinding, cement plant, metallurgic and steel rolling, environment protection, and also power generator, heavy-duty gear reducers and large-sized castings and forgings, etc.
CITICHL is national major industry and heavy machinery manufacturing base in the middle of china, we can supply the customers with important complete technical equipments in mining, non-ferrous metal, chemical industry, metallurgy, construction materials, environment protection, and power generating as well as other basic industries. The company can accept the packed engineering project. Our products are sold well to countries and regions in Asia, Africa, Europe, and Australia, and hold a large market share home and abroad.

Our Service
Pre-sale support:
As a good adviser and assistant of clients, we can enable them to get rich and generous returns on their investments:
Select equipment model;
Design and manufacture products according to clients' special requirement;
Train technical personnel for clients.

Services during the sale:
If you are an export client, we will support you the thoughtful documentary service from the date of signing the contract until the equipment installation and modulation finished.
We respect clients and always devote ourselves to improving the total value of clients:
Pre-check and accept products ahead of delivery;
help clients to draft solving plans.

After-sales service support:
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
We will send a professional and high levels installation engineer team at the same time the product properly to the destination, in order to supply you a full range of products installation services. For some typical problems, our rigorous installed engineers also will do some certain installation debugging training, etc.
Frequently Asked Questions
How is the quality of your machine?
Our products are manufactured strictly according to national and international standard, and we take a test on every grinder before delivery.
If products'quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
How about price?
We are factory and be able to give you the lowest price than market one, and we have a policy that " for saving time and absolutely honest business attitude, we quote as low as possible for any customer, and discount can be given according to quantity".
Payment Terms and Service?
A. We usually accept T/T, L/C;
B. Our engineer is aviliable to installation machine overseas;
C. The guarantee period of our machine is one year;
D. Spare parts will supply at any time.

---
