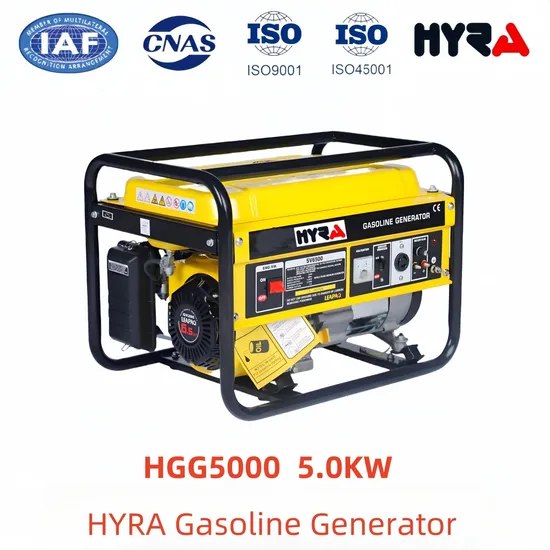

5.0kw 5.5kw Electric Start Gasoline Generator Mini Portable Gasoline Generator Long-Lasting Power Petrol/Gasoline Generator

Product Description

Product Description
Notes:
Please consult customer service before purchase
1. Optional add-on: hand start, electric start, ATS, LPG dual-fuel, tri-fuel, wheel handrail, etc.;.
2.DC output can be configured according to requirements.
3. The number of phases can be configured according to requirements.
Optional plugs are available Product Parameters

Mdoel		HGG5000
Generator	Rated Output Power	5.0 kva
	Max Output Power	5.5 kva
	Rated Voltage	220 / 380V
	Rated Frequency	50 / 60Hz
	Phase	Single / Three Phase
	Fuel tank Capacity	25L
	Start System	Recoil/Electric Start
	Alternator	Aluminum/Copper
	Power Factor cos	1
Engine	Engine Model	GX390
	Engine output Power	13hp
	Bore x Stroke	88*64mm
	Displacement	389cc
	Compression ratio	8.0:1
	Rated Rotation Speed	3000 / 3600rpm
	Oil Capacity	1.1L
Package	Net / GrossWeight	78 / 80 kg
	Dimension	710 x 530 x 550mm
	20'GP	136 sets
	40'HQ	284 sets

FAQ:
1:How to choose a gasoline/diesel generator?
Gasoline generators are easier to start, less noisy, less costly, and lighter in weight. Diesel generators are noisier, harder to start and cost more initially. If you need a lightweight, portable generator for low to medium power, it is recommended that you choose a gasoline generator. If you need a generator with a high power output, used for long periods of time in heavy duty situations, it is recommended that you choose a diesel generator.
2:How powerful a gasoline generator is needed for home emergency backup power?
-Recommended power: 2kW to 7kW
-If you only need to power basic lighting and small appliances, a 2kW to 3kW generator will suffice.
-If you need to power several large appliances such as refrigerators, air conditioners, etc., a 5kW to 7kW generator is more suitable.
3: Should I choose a gasoline generator with copper or aluminium wires?
-Copper wire generator: If you need to use the generator for a long period of time or need to run high power equipment, a copper wire generator is more reliable and durable.
-Choose an aluminium-wire generator: If you have a limited budget and the generator is not used frequently or only for low-power equipment, an aluminium-wire generator is an affordable option.
4:What power gasoline generator is needed for construction site?
-Recommended power: 5kW to 15kW
-Small tools and equipment usually require a 5kW to 8kW generator.
-For multiple pieces of equipment working at the same time or when using powerful equipment, a 10kW to 15kW generator is recommended.
5:What power gasoline generator is needed for outdoor activities and performances?
-Recommended power: 5kW to 10kW
-Sound and lighting equipment have a high demand for electricity, so a 5kW to 7kW generator is recommended.
-If it is a large-scale event or requires continuous power for a long time, a 10kW generator will be more secure.
Selection of generator power calculation
1:General appliances: (such as lights, laptops, displays, computers, fans, etc.) can be loaded according to the power of the appliance to the rated power, the power is relatively small or no motor type of appliances can be in accordance with the actual power.
2:Heating appliances: (such as electric kettles, induction cookers, microwave ovens, ovens, rice cookers, etc.) according to the actual power of the appliance multiplied by 1.3 times the calculation, for example, electric kettle 1800W, then multiplied by 1.3 times, resulting in an output of 2340 power, then it is recommended to buy more than 3,000W generator.
3:Inductive appliances (such as air conditioners, pumps, refrigerators, motors, ice machines, ice cream makers, heaters, water heaters) (high pressure machines, deep well pumps, cranes, and other special equipment multiplied by 3 times or so) according to the actual power of the appliance, multiplied by about 2.2-2.5 times the calculation, for example, electric air-conditioning 1 horse 2600W, then multiplied by 2.2-2.5 times, resulting in an output of 5720 power, it is recommended to purchase 6500W or more generator. Detailed Photos Certifications

HGG-Gsoline Generator set
Generator	Rated Output Power	0.65 kva	1.0 kva	2.0 kva	2.5 kva	2.8 kva	3.0 kva	5.0 kva	6.0 kva
	Max Output Power	0.75 kva	1.1 kva	2.5 kva	2.8 kva	3.0 kva	3.3 kva	5.5 kva	6.5 kva
	Rated Voltage	220	220 / 380V	220 / 380V	220 / 380V	220 / 380V	220 / 380V	220 / 380V	220 / 380V
	Rated Frequency	50 / 60Hz	50 / 60Hz	50 / 60Hz	50 / 60Hz	50 / 60Hz	50 / 60Hz	50 / 60Hz	50 / 60Hz
	Phase:	Single Phase	Single / Three Phase	Single / Three Phase	Single / Three Phase	Single / Three Phase	Single / Three Phase	Single / Three Phase	Single / Three Phase
	Fuel tank Capacity	4L	6L	15L	15L	25L	25L	25L	25L
	Start System	Recoil Start	Recoil/Electric Start	Recoil/Electric Start	Recoil/Electric Start	Recoil/Electric Start	Recoil/Electric Start	Recoil/Electric Start	Recoil/Electric Start
	Alternator	Aluminum/Copper	Aluminum/Copper	Aluminum/Copper	Aluminum/Copper	Aluminum/Copper	Aluminum/Copper	Aluminum/Copper	Aluminum/Copper
	Power Factor cos	1	1	1	1	1	1	1	1
Engine	Engine Model	1E47F	GX156	GX160	GX210	GX210	GX270	GX390	GX420
	Engine output Power	2.0hp	2.6hp	6.5hp	7.5hp	7.5hp	9hp	13hp	15hp
	Bore x Stroke	45*38mm	56*38mm	68*54mm	70*56mm	70*56mm	77*58mm	88*64mm	90*64mm
	Displacement	63cc	93.5cc	196cc	212cc	212cc	270cc	389cc	423cc
	Compression ratio	7.3:1	7.7:1	8.5:1	8.5:1	8.5:1	8.2:1	8.0:1	8.2:1
	Rated Rotation Speed	3000 / 3600rpm	3000 / 3600rpm	3000 / 3600rpm	3000 / 3600rpm	3000 / 3600rpm	3000 / 3600rpm	3000 / 3600rpm	3000 / 3600rpm
	Oil Capacity	0.35L	0.4L	0.6L	0.6L	0.6L	1.1L	1.1L	1.1L
Package	Net / GrossWeight	16 / 17 kg	24 / 25 kg	41 / 42 kg	41 / 42 kg	48 / 50 kg	68 / 70 kg	78 / 80 kg	78 / 80 kg
	Dimension	390 x 330 x 330mm	470 x 370 x 370mm	610 x 444 x 444mm	610 x 444 x 444mm	680 x 455 x 455mm	710 x 530 x 550mm	710 x 530 x 550mm	710 x 530 x 550mm
	20'GP	735 sets	432 sets	280 sets	280 sets	200 sets	136 sets	136 sets	136 sets
	40'HQ	1750 sets	1070 sets	587 sets	587 sets	425 sets	284 sets	284 sets	284 sets
